Function: Single/dual end stripping, Full stripping, Partial stripping, Single/Dual end terminal crimping, Heat shrink tubing cutting, insertion & shrink, Cut depth, Pull-off length.
Wire range: AWG 22-AWG 14
Raw material: PVC, Teflon, Low halogen, etc.
Crimp force: 2 tons [20 KN]
Cut length (L): 75-99999 mm
Cut length tolerance: 0.2mm ± 0.002 x L
Strip length:
Front side: 0.5-8 mm
Rear side: 0.1-10 mm
Production rate: 1000 pcs/h by 150mm cutting length
Data library: 100 programs
Detector: Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Optional peripherals: CFM, Wire prefeed machine,
Display: 10" touch screen, English / Chinese
Power supply: AC 110/220V ± 10%, 50/60 Hz
Rated power: 3500 W
Air supply: 0.5-0.8 MPa [Clean and dry air]
Weight: 800 KG
Dimensions: L 1800 x W 800 x H 1600 mm
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

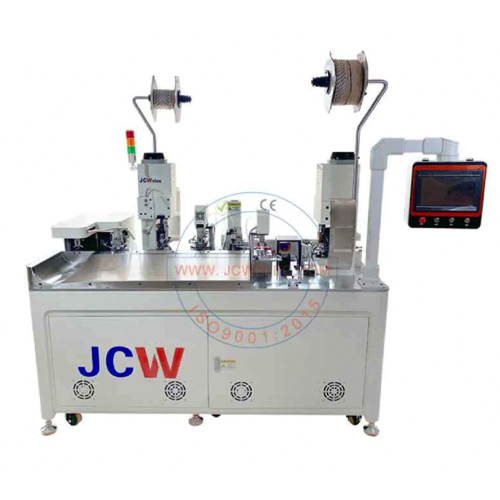

• Fully programmable heat shrink tube processing device
• Cut, strip, crimp, print & shrink all in 1. Print only on request
• Ferrule crimping is available, only on request
• Compatible with all China OTP crimp applicators
• Customizable for adapting Europe mini-style applicator
• High price-performance ratio
• Ultra-compact design, high efficiency
• 10" touch screen user-friendly operation system
