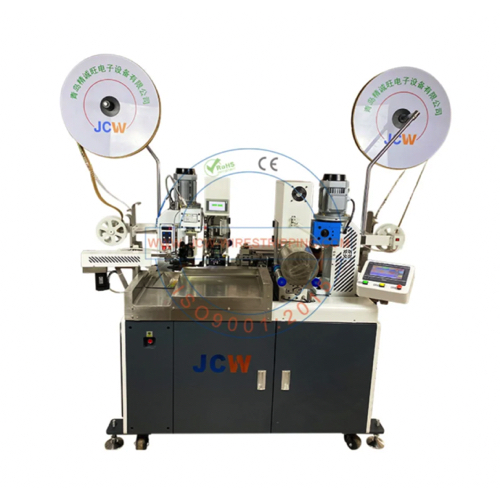

JCW JCW-CST17B ການຕັດສາຍແລະສາຍ, ການຜະນຶກເຂົ້າກັບເຄື່ອງຢຸດ (0.2-2.5 mm², 35-99999 mm)
Function: Wire measuring and cutting into length, stripping, seal insertion, crimping; Sealing alarm. Cut depth, Strip length, Crimp depth, Automatic detection and sort out defective product
Raw material: AV, AVS, AVSS, CAVUS, KVKIV, UL
Conductor cross-section: 0.2-2.5 mm²
Cutting length: 35 - 99999 mm (Minimum insulation length 17 mm, can be custom)
Cut length accuracy: 0.1 mm ± 0.005 x L
Strip length: Front end - 18 mm, Rear end - 20 mm (can be custom)
Crimping force: 2 tons (can be custom)
Display: 7" Color touch screen, English / Chinese (other languages on request)
Data library: 100 programs
Product rate: 1900 pcs/h by 100 mm wire length [Sealing & Crimping]
Optional peripherals: CFM, CCD, Wire prefeeder, Wire stacker
Rated power: 2000 W
Air supply: 0.4-0.8 MPa [clean and dry air]
Power supply: AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions: L 1400 x W 920 x H 1500 mm
Weight: 600 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
