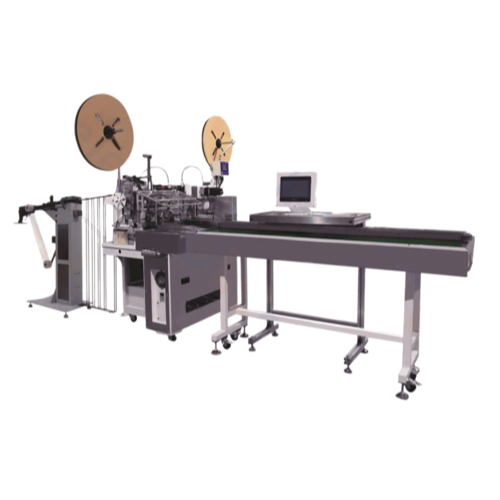

JCW JCW-CST17 ເຄື່ອງປະທັບຕາສາຍໄຟແບບ Dual-end ເຕັມອັດຕະໂນມັດ (0.2-2.5 mm², 35-99999 mm, 0-15 mm)
Function: Wire measuring and cut into length, Wire stripping, sealing, crimping; Sealing alarm. Cut depth, Strip length, Crimp depth, Automatic detect and sort out defective product
Raw material: AV, AVS, AVSS, CAVUS, KVKIV, UL
Conductor cross-section: 0.2-2.5 mm²
Cut length (L): 35-99999 mm
Cut length accuracy: 0.1 mm ± 0.005 x L
Strip length: 0-15 mm
Crimping press: Servo motorized
Crimping force: 2.5 tons
Data library: 100 programs
Display: Color touch screen, English / Chinese [other languages on request]
Product rate: 2000-2500 pcs/h by 100 mm wire length [Sealing & Crimping]
Optional peripherals: Upper-computer software, CFM, CCD, Wire prefeeder, Wire stacker
Air supply: 0.5 MPa [clean and dry air], 150 ANR / min
Power supply: AC 110V-220V ± 10%, 50/60 Hz
Dimensions: L 1200 x W 1100 x H 2300 mm
Weight: 525 KG
