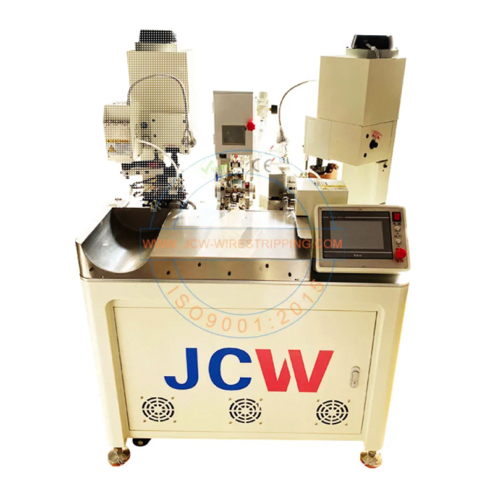

Function: Wire measuring and cut into length, Double sides stripping & terminal crimping, Single side sealing, Sealing alarm, Sequence work
Wire range: 0.08 - 1.3 mm² [Customizable]
Seal type: O.D. x Length ≤ φ 15 mm x 14 mm
Cut length (L): 50 - 99999 mm
Cut length accuracy: 1 mm ± 0.002 x L
Strip length: 1.5 - 10 mm
Crimping force: 2 tons [3 tons on request]
Display: 7" touch screen, English / Chinese [other languages on request]
Data library: 100 programs
Product rate: 3000 pcs/h by 100 mm wire length [Sealing & Crimping]
Air supply: 0.4 - 0.6 MPa [clean and dry air]
Power supply: AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions: L 800 x W 1000 x H 1500 mm
Weight: 450 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
Updated model of CST11
Higher flexibility on terminal crimping & sealing
Fully programmable model, user-friendly display
CFM, wire prefeeder, wire stacker are all optional
