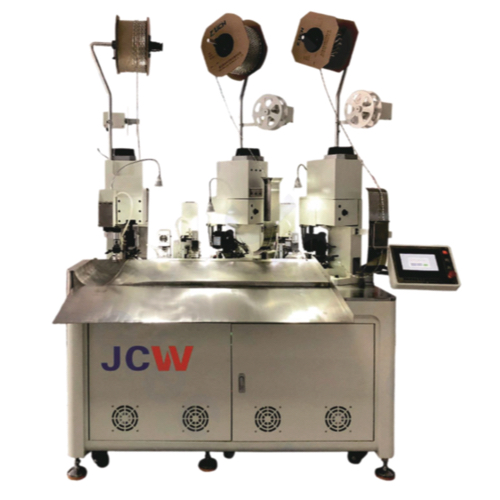

JCW JCW-CST110 ສາຍໄຟອັດຕະໂນມັດຢ່າງເຕັມສ່ວນຕັດແຖບແລະເຄື່ອງ crimp (20 KN, 41-99999 mm, 0.05-2 mm²)
Functions: 2 Wires, 3 Terminals, 3 Crimping Units, Cut depth, Crimp position, Pull-off length, Wire detector, Knot detector, Air pressure detector
Wire cross-section: 0.05-2 mm² (AWG 30-14)
Cut length (L): 41-99999 mm [Short size on request]
Cut accuracy:
L<100mm: 0.2 mm ± 0.002 x L
L≥100mm: 0.5 mm ± 0.002 x L
Cut length increment: 0.1 mm
Strip length:
Front end: 0.5-8 mm
Rear end: 0.1-10 mm
Production rate: 2000 sets/h
Display: 7" touch [on request]
Data library: 100 programs
Crimping force: 20 KN (2.0 tons) [40 KN on request]
Optional peripheral: Wire pre-feeder, CFM, wire stacker
Detection: Wire lack, Terminal crimping, Wire knot, Air pressure
Power supply: AC 110-220 V ± 10%, 50/60 Hz
Air supply: 0.4-0.7 MPa [clean and dry air]
Dimensions: L 1000 x W 1600 x H 1800 mm
Weight: 550 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
