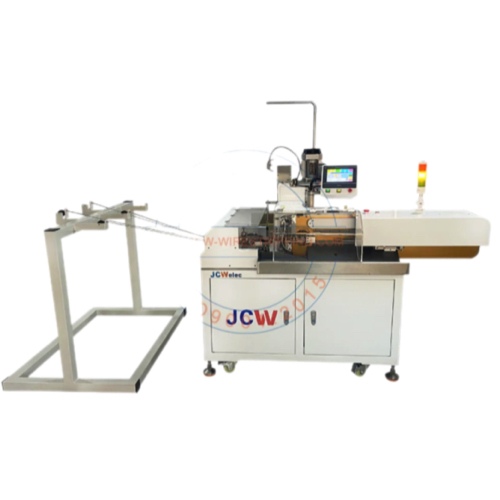

JCW JCW-CST08 ເຕັມອັດຕະໂນມັດ Wire Crimping Tinning ແລະ Twisting Machine (AWG 32-AWG 16, 2 tons)

Function: Lists various functions including stripping, crimping, tinning, twisting, cutting, etc.

Wire range: AWG 32-AWG 16

Raw material: PVC, Tefion, Low halogen, etc.

Crimp force: 2 tons [20 KN]

Cut length (L)

Pair Twist OFF: 14-850 mm [1200-1500-1800mm on request]

Pair Twist ON: 25-700 mm [Customizable longer cutting length]

Cut length tolerance: 0.002 x L

Strip length

Standard model: Front side 7 mm, Rear side 11 mm

Optional: Rear side 15 mm/18 mm

Twist length: 2-10.5 mm

Tinning length: 0.5-10.5 mm

Production rate

Pair Twist OFF: 5500 pcs/h by 100mm cutting length

Pair Twist ON: 650 - 900 twisting / h

Data library: 100 programs

Detector: Wire lack, Wire knot, Wire stripping, Terminal crimping, Air

pressure

Smoke collect system: Yes

Optional peripherals: CFM, Wire unwinder, Marking system

Display: 7" touch screen, English / Chinese [ other languages on

request ]

Power supply: AC 110 - 220V ± 10%, 50 / 60 Hz [ 110V on request ]

Rated power: 3000 W

Air supply: 0.5 - 0.8 MPa [ Clean and dry air ]

Weight: 500KG

Dimensions: L 1700 x W 720 x H 1500mm

Fully servo motorized, highly precise and stable

Wire cut, strip, tinning, pair twisting all in one

Wire Range: AWG 32 - 16

Cutting length: 14 - 850 mm [ 1200/1500/1800mm on request ]

Tinning length: 0.5 - 10.5 mm

Crimping force: 2 tons

Ribbon cable crimping to tinning on request
