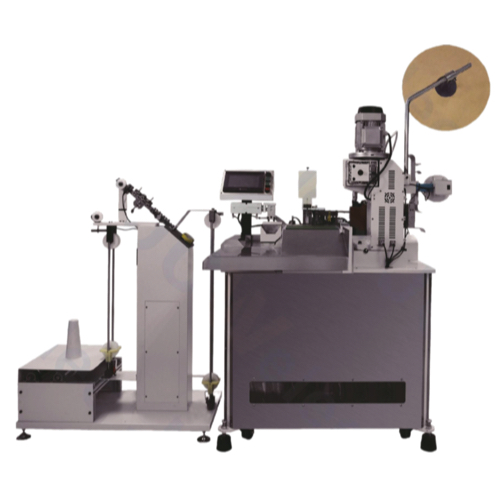

JCW JCW-CST07A ເຕັມອັດຕະໂນມັດ Wire Crimping ແລະ Tinning ເຄື່ອງ (0.03-0.75 mm², 30-9999 mm, 20KN)
Function: Wire pre-feeder, Single- / Dual-end strip, Single-end crimp, Cut depth, Stripping length, Twisting length, Tinning depth, Crimp position
Wire cross-section: 0.03-0.75 mm² (AWG 32-18)
Cutting length (L): 30-9999 mm
Stripping length: Front side: 0.5-10 mm, Rear side: 0.5-15 mm
Twisting length: 2-15 mm
Tinning length: 2-15 mm
Crimping force: 20 KN (2.0 tons)
Production rate: 3600 pcs/h by tinning
Power supply: AC 110-220V ± 10%, 50/60Hz
Air supply: 0.5-0.7 MPa [Clean and dry air]
Weight: 450 KG
Dimensions: L 1100 x W 920 x H 1600mm
Optional peripheral: CFM, Wire prefeeder
Detection: Wire lack, Wire jam, Stripping, Crimping, Air pressure
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility
