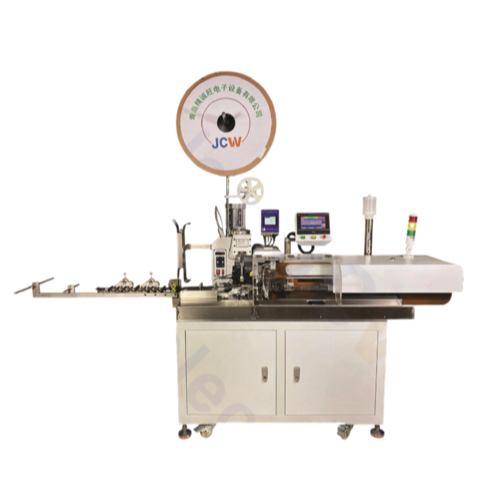

JCW JCW-CST06 ອັດຕະໂນມັດ 5 ສາຍ Crimping ກັບເຄື່ອງ Tinning (AWG 32-AWG 16, 2 tons, 8-850 mm)
Function: Single/dual end stripping, Full stripping, Partial stripping, Middle stripping, Front side crimping, Rear side fluxing & tinning, Cut depth, Pull-off length
Wire range: AWG 32-AWG 16
Raw material: PVC, Teflon, Low halogen, etc.
Crimp force: 2 tons [20 KN]
Cut length (L): 8-850 mm [1200-1500-1800mm on request]
Cut length tolerance: 0.002xL
Strip length: 0.1-11.5 mm
Twist length: 0.5-10.5 mm
Tinning length: 0.5-10.5 mm
Production rate: 6600 pcs/h by 100mm cutting length
Data library: 100 programs
Detector: Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Smoke collect system: Yes
Optional peripherals: CFM, Wire unwinder, Marking system
Display: 7" touch screen, English / Chinese [other languages on request]
Power supply: AC 110-220V ± 10%, 50/60 Hz
Rated power: 2500 W
Air supply: 0.5-0.8 MPa [Clean and dry air]
Weight: 500KG
Dimensions: L 1720 x W 750 x H 1500mm
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
