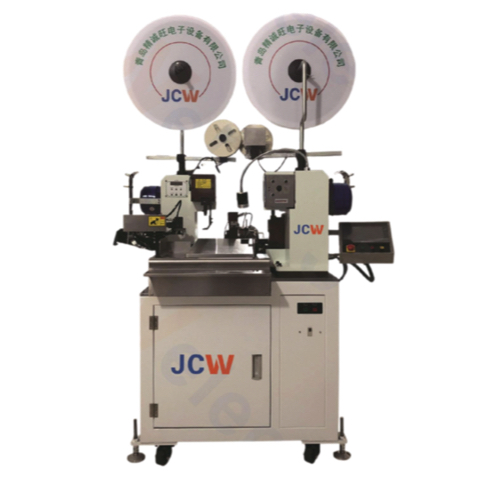

JCW JCW-CST05 ເຄື່ອງ crimping ສາຍຂະຫນາດນ້ອຍສອງດ້ານສູງ (0.03-2 mm², 22-99999 mm, 20KN)
Function: Wire pre-feeder, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, Crimp position
Conductor cross-section: 0.03-2 mm² (AWG 32-14)
Stripping length:
Front Side: 0.2 - 8 mm
Rear Side: 0.1-10 mm
Cutting length: 22-99999mm
Crimping force: 20KN (2.0 tons)
Cutting depth adjustment: 0.01mm, max 3.50mm
Production rate: 3600 pcs/h
Rated power: 2200 ~ 2500W
Power supply: AC 110-220V ± 10% 50/60Hz
Air supply: 0.5-0.7 MPa [Clean and dry air]
Weight: 460 KG
Dimensions: L 1400 x W 1000 x H 1800mm
Accessory device: Synchronous wire pre-feeder, paper winder
Optional peripheral: Wire pre-feeder, CFM, wire stacker
Detection: Wire lack, Wire jam, Stripping, Crimping, Air pressure
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
