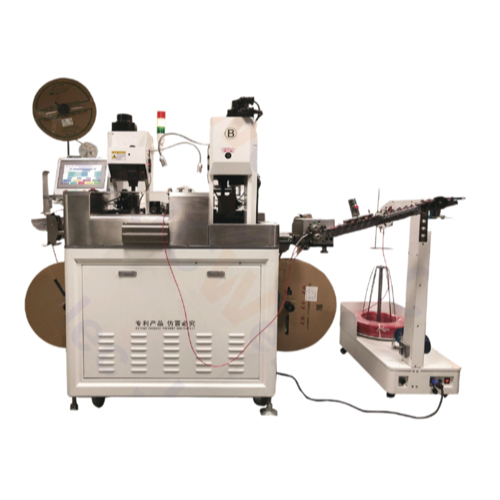

JCW JCW-CST04 ເຄື່ອງ Crimping Terminal ອັດຕະໂນມັດຢ່າງເຕັມສ່ວນ Pre-Insulated (0.03 - 2 mm², 0.1-10.5 mm)
Function: Wire prefeeder, wire measuring and cutting, single / dual-end strip, sing/ dual-end crimp, cut depth, wire run-out detection, wire knot detection, air pressure detection, wire stripping detection, terminal crimping detection, crimp positioning.
Conductor cross-section: 0.03 - 2 mm² (AWG 30-14)
Cut Length (L): 30-99999 mm
Cut accuracy: ± 0.5 ± 0.002 x L
Strip length: 0.1-10.5 mm
Production rate: 2000 pcs/h by 100 mm wire length
Display: English / Chinese [Other languages on request]
Rated power: 2500 W
Optional peripheral: Wire pre-feeder, CFM, wire stacker
Power supply: AC 110-220V ± 10%, 50/60Hz
Air supply: 0.4-0.7 MPa [ Clean and dry air]
Dimensions: L 1800 x W 1100 x H 1700 mm
Weight: 550 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
