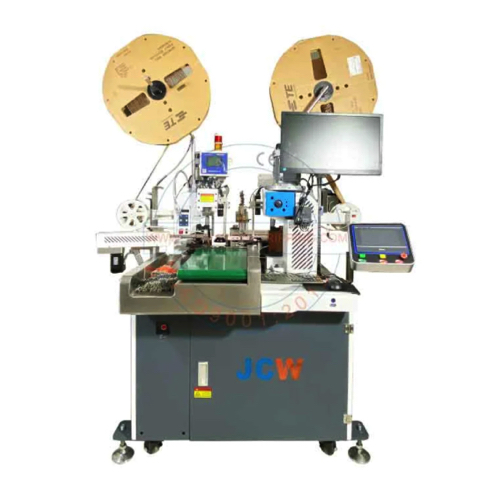

JCW JCW-CST02S High-End Vision ກວດພົບແຖບຕັດສາຍ 2 ດ້ານແລະປິດເຄື່ອງ (AWG 32-AWG16, 1.5-10 mm, 20KN)

Function: Wire measuring and cut into length, both sides: stripping to crimping. Cut depth, strip length, partial strip, air detection, wire lack detection, wire knot detection, crimping detection, data library

Wire cross-section: AWG 32-AWG16 (Customizable)

Strip length: 1.5-10 mm

Cut length (L): 45-99999 mm

Cut length tolerance: + 1mm + 0.002 x L

Crimp force: 20KN (2.0 tons) [40 KN on request]

Detector: Wire lack, Terminal crimping, Wire knot, Air pressure [ CFM, CCD on request]

Production rate: 3000-3800 pcs/hr (L≤100mm) (no CFM, no CCD)

Data library: 100 programs

Display: 7" touch screen, English / Chinese [other languages on request]

Power supply: AC 220V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa [ Clean and dry air]

Weight: 550 KG

Dimensions: L 1410 x W 915 × H 1500

CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

• Vision detection system, CFM

• Servo motorized wire prefeeder

• Precise wire cutting and stripping

• User-friendly interface

• 32AWG fine wire
