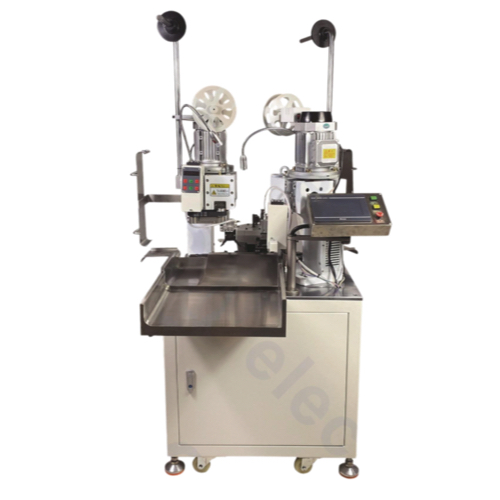

JCW JCW-CST02B Ultra-eco Fully-auto Fully-auto Dual-end Wire Crimping Machine (AWG 32-18, 0.1-15 mm, 18 KN)
Function: Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Strip length
Wire cross-section: AWG 32-18
Strip length: 0.1-15 mm
Cut length (L): 10-9999 mm
Crimp force: 18 KN
Detector: Wire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]
Production rate: 4500 pcs/h by 100 mm wire length
Data library: 100 programs
Display: 7" touch screen, English / Chinese [other languages on request]
Power supply: AC 110-220V ± 10%, 50/60 Hz
Air supply: 0.4-0.6 MPa [Clean and dry air]
Weight: 290 KG
Dimensions: L 780 x W 650 x H 1380mm
CE-Conformity: Complies with CE equipment guidelines relative to relative to mechanical, electrical safety and electromagnetic compatibility.
