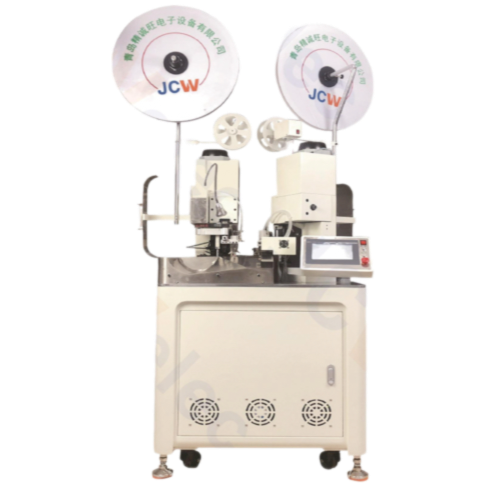

JCW JCW-CST02 ການຖອດສາຍສອງປາຍອັດຕະໂນມັດຢ່າງເຕັມສ່ວນ (0.1-2 mm², 20KN, 1.5-10 mm)
Function: Wire cutting, Single / Dual-end strip, Single / Dual-end crimp, Cut depth, Pull-off length, etc
Wire cross-section: 0.1-2 mm² (AWG 28-14) [4mm² on request]
Strip length: 1.5-10 mm
Cut length (L): 45-99999 mm
Cut length tolerance: ±1mm +0.002 x L
Crimp force: 20KN (2.0 tons) [40 KN on request]
Detector: Wire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]
Production rate: 4000 pcs/h by 100 mm wire length
Data library: 100 programs
Display: 7" touch screen, English / Chinese [other languages on request]
Power supply: AC 110-220V ± 10%, 50/60 Hz
Air supply: 0.4-0.6 MPa [Clean and dry air]
Weight: 358KG
Dimensions: L 800 x W 700 x H 1500mm
CE-Conformity: Complies with CE equipment guidelines relative to mechanical, electromagnetic compatibility, and electrical safety
