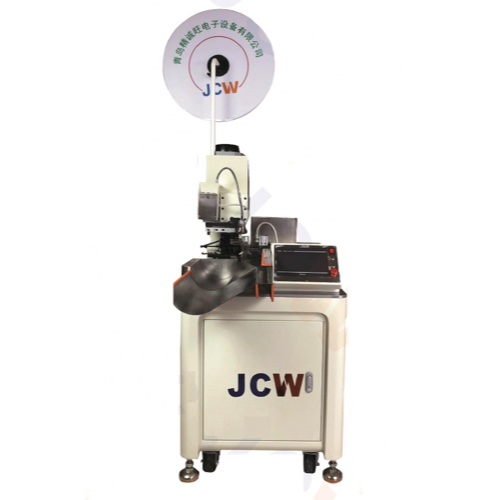

JCW JCW-CST01 ອັດຕະໂນມັດເຄື່ອງ crimping ສາຍດຽວ (0.1 - 2 mm², 20 KN, 1.5-10 mm)
Functions: Cut depth, Strip length, Full stripping, Partial stripping. Side 1: stripping, crimping. Side 2: stripping, twisting. Data library.
Wire cross-section: 0.1 - 2 mm² (AWG 28 - 14) [ Customizable ]
Strip length: 1.5-10 mm
Strip length increment: 0.1 mm
Cut length (L): 45 - 999999 mm
Cut length accuracy: ±1 mm + 0.002 x L
Production rate: 4200 pcs/h by 300 mm wire length
Display: 7" touch screen, English / Chinese [ other languages on request ]
Data library: 100 programs
Crimping force: 20 KN (2.0 tons) [ Customizable ]
Optional peripheral: Wire pre-feeder, CFM, wire stacker
Detection: Wire lack, Terminal crimping, Wire knot, Air pressure [CFM on request]
Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply: 0.4 ~ 0.7 MPa [ clean and dry air ]
Dimensions: L 650 x W 750 x H 1500 mm
Weight: 310 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
