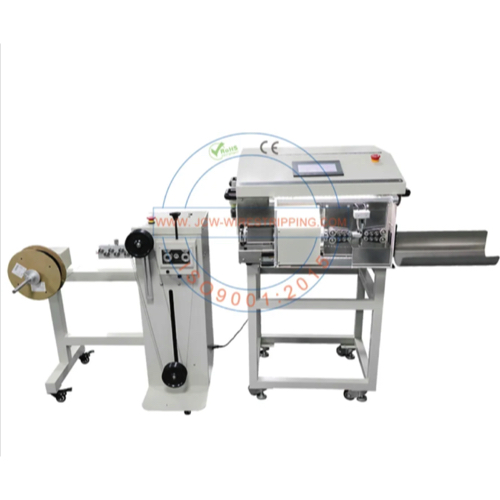

JCW JCW-CS600A ເຄື່ອງຕັດສາຍ Micro Coaxial Cable (22-9999 mm, 200 mm, 45 mm)

Function: Single wire, multicore cable, micro coax cable, cut length, cut depth, data library, workbench

Cable diameter: 0.6-4.0 mm

Cutting length (L): 22-9999 mm

Cutting accuracy: L ± 1‰

Cut depth increment: 0.01 mm

Stripping length:

Lead side: max 200 mm

Rear side: max 45 mm

Stripping length increment: 0.01 mm

Stripping steps: 6

Product rate: 750-1300 pcs/h [Depending on cable type]

Data library: 40 programs

Power supply: AC 110-220 V ± 10%, 50/60 Hz

Rated power: 800 W

Display: English / Chinese [customizable]

Dimensions: L 760 x W 700 x H 400 mm

Weight: 100 KG

• Micro coaxial cable 0.64 to 4.0mm diameter

• Rotary cutter head, single-conductor wire, multicore cable

• Long stripping length up to 200mm

• High production rate 1300 pcs per hour

• Automatic product line, professional cable prefeeder
