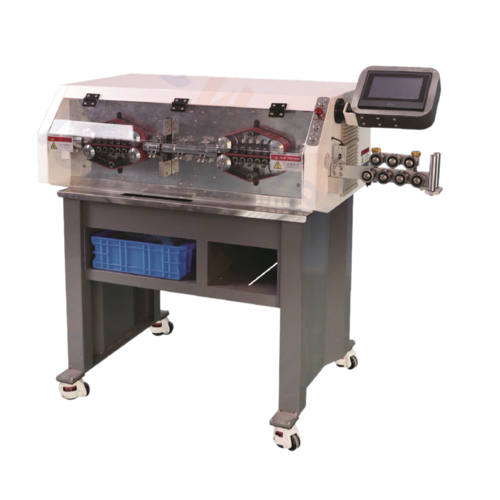

JCW JCW-CS20 ເຄື່ອງຕັດສາຍ HV Motorized Servo (10-150/240 mm², 1-99999.9 mm)
Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Run-out sensor, Length correction, Safety door sensor
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc /
Conductor cross-sections: 10-150/240 mm²
Cable diameter: Max 30 mm
Cutting length (L): 1-99999.9 mm
Stripping length:
Front (right) side: 1-800 mm
Rear (left) side: 1 - 260 mm
Display: 7" color touchscreen, English / Chinese [other languages on request]
Compatible peripherals: Cable splitter, wire prefeeder, robot arm, conveyor belt
Feeding system: 32 rollers, belt-driven
Production rate: 1800 pcs/h [depends on cutting length]
Power supply: AC 110V-220V ± 10%, 50/60 Hz
Dimensions: L 1580 x W 1650 x H 1320 mm. 240KG
