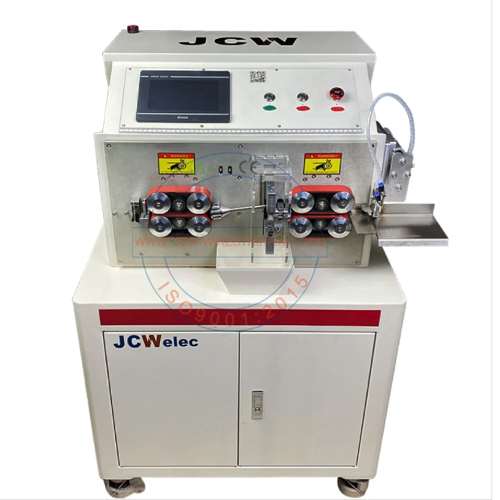

JCW JCW-CS15T ເຄື່ອງຕັດ ແລະ ຖອດສາຍເຄເບີ້ນ Multicore ທີ່ມີໜ້າທີ່ເປັນອິດສະຫຼະ (2 - 10 mm, 0.1 - 999999 mm)

Function: Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer

Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc

Cable size: 2 - 10 mm O.D.

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Single wire: YES

Multi-core cable: Round

Outer jacket stripping length: Leading (right) side: 250 mm, Trailing (left) side: 80 mm

Inner core stripping length: 30 mm at dual-ends

Production rate: 1000 pcs/h by 100mm wire length [multi-layer stripping]

Data library: 100 programs

Feeding unit: Belt

Robot arm: Yes

Display: 7" color touchscreen, English/Chinese [other languages on request]

Compatible peripherals: Cable prefeeder & dereeler, robot arm, conveyor belt

Power supply: AC 110-220 V ± 10%, 50/60 Hz

Air supply: 0.4-0.7 MPa (clean and dry air)

Dimensions: Machine: L 800 x W 750 x H 1200 mm, Wire straightener: 350 mm

Weight: 115 KG

• Fully programmable freestanding automatic cut & strip station

• High performance for multicore cable up to 10mm OD

• High-speed 1000 pcs/h with stripping double ends

• High-quality belt feeding system

• Save 100 programs with names

• Automated length calibration

• Cable run-out sensor
