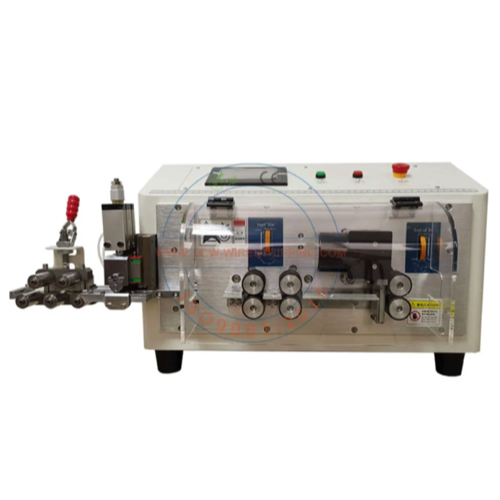

JCW JCW-CS12 ອັດຕະໂນມັດ Flat Ribbon Cable Splitter ແລະ Stripping Machine (20 mm, 0.1 - 999999 mm)

Function: Ribbon cable, Cable measuring, Cut length, Slitting length, Full stripping, Partial stripping, Cut depth, cutting length correction

Cable width: Max 20 mm

Cutting length (L): 0.1 - 999999 mm

Cutting length accuracy: 0.002 x L

Stripping length: 30 mm

Production rate: 3000 - 5000 pcs/h

Data library: 100 programs

Display: 4.3" color touchscreen, English / Chinese [other languages on request]

Cable feeding: 6 rollers

Compatible peripherals: Cable prefeeding machine, robot arm, cable collector

Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz

Air supply: 0.4 - 0.7 MPa (clean and dry air)

Dimensions: L 560 x W 470 x H 370 mm

Weight: 38 KG

• Flat cable, ribbon cable dedicated machine

• 20mm in width, 30mm stripping length at dual-end

• 6 rollers feed system maintains feeding and pulling accuracy

• Slitting length can be adjusted simply and quickly

• 4.3" color touch screen, user-friendly interface

• Fully programmable saves 100 programs
