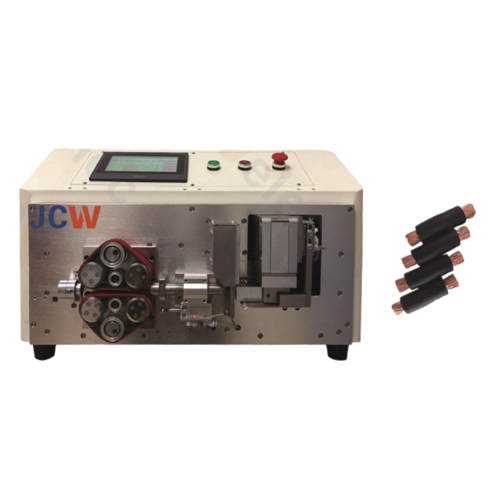

JCW JCW-CS07B ເຄື່ອງຕັດ ແລະຖອດສາຍເຄເບີ້ນໜັກ ສັ້ນສຸດ 50mm² (10-50 mm²)
Function: Servo-driven, belt transfer, wire measuring, cut into ultra-short length, single-end strip, dual-end strip, automatic length correction
Cutting length accuracy: Strip Length Increment 50-400 mm [proper length]: 0.01 mm
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections: 10-50 mm²
Length with Jacket Min: 25 mm (L=50 mm, strip 12.5 mm at both sides)
Leading (right) side: 50 mm [stripping]
Trailing (left) side: 25 mm [stripping]
Production rate: 500 pcs/h (L=50 mm, strip 12.5 mm at both sides)
Display: 7" color touchscreen, English / Chinese [other languages on request]
Data library: 100 programs
Dimensions: L 700 x W 620 x H 500 mm
Compatible peripherals: Cable prefeeder, cable stacker
Weight: 80 KG
