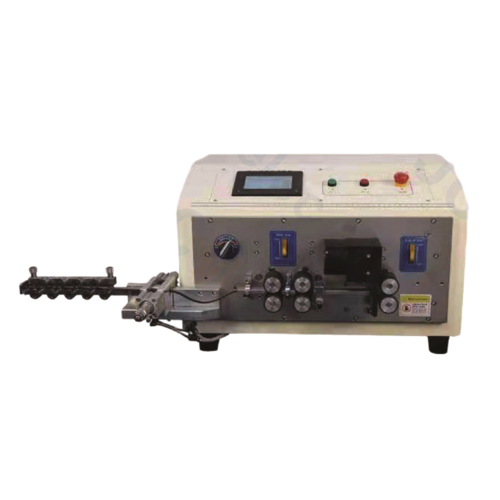

JCW JCW-CS06W ອັດຕະໂນມັດ Middle Spliting Cable Window Stripping Machine (0.1-16 mm², 0.1-999999 mm)
Function: Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Split length, Cut depth, Wire run-out sensor, Length correction
Raw material: PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections: 0.1-16 mm², 10 mm diameter
Cutting length (L): 0.1-999999 mm
Production rate: 600-1000 pcs/h, depends on the setting
Stripping length:
Front (right) side: 150 mm [partial stripping]
Rear (left) side: 70 mm [partial stripping]
Display: 4.3" color touchscreen, English / Chinese [other languages on request]
Compatible peripherals: Cable prefeeding unit, robot arm, cable stacker
Power supply: AC 110V-220V±10%, 50/60 Hz
Air supply: 0.4-0.7 MPa (clean and dry air)
Dimensions:
Machine: L 560 x W 470 x H 370 mm
Cable slitter & straightener: 470 mm
Weight: 55 KG
