Function: Single wire, Multicore cable, Zip-cord, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Flat cable slitting, Wire lack sensor, Length correction, Thermal transfer printer
Conductor cross-sections: 0.03 - 6 mm²
Cutting length (L): 0.1 - 999999 mm
Cutting length accuracy: 0.002 x L
Stripping length: Front (right) side: 50 mm [Full stripping], Rear (left) side: 30 mm [Full stripping], Middle strip: 13 sections
Production rate: 4700 - 9500 pcs/h by 50 mm wire length [single/double wire guider]
Data library: 100 programs
Zip-cord: Optional
Flat multicore cable: Inner core stripping (optional)
Round multicore cable: Outer jacket stripping (optional)
Display: 4.3" color touchscreen, English / Chinese [other languages on request]
Compatible peripherals: Cable splitter, wire prefeeder, robot arm, conveyor belt
Power supply: AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply: 0.4 - 0.7 MPa (clean and dry air)
Dimensions:
Machine: L 700 x W 680 x H 1050 mm
Wire straightener: 250 mm
Weight: 75 KG
CE-Conformity: Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.

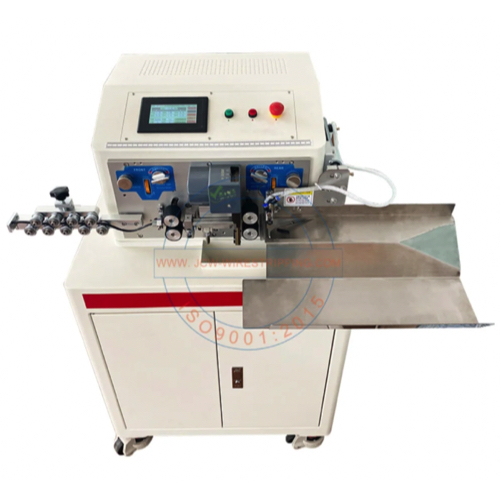

• Standard & flexible cut and strip machine
• 4.3" color touchscreen simplify programming
• Single wire 0.03 mm² to 6 mm² [AWG32-10]
• Expand capability to twin parallel zip-cord, multicore cable
• Automatic cutting length calibration ensures precision
• Wire run-out sensor gives machine stop signal
• Applicable to thermal transfer printer
