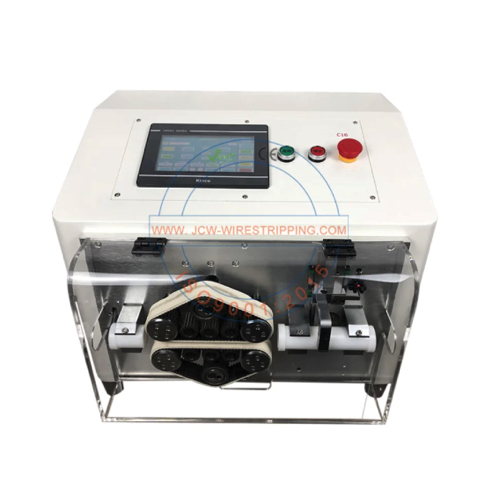

JCW JCW-C16 ເຄື່ອງຕັດທໍ່ແລະສາຍເຄເບີ້ນອະເນກປະສົງ (5-99999.99 mm, 30 mm)

Function: Corrugated tube, plastic tubes, round cable, cutting speed, feeding speed, save program, calibrate cutting length

Tube cutting diameter: Max 30 mm

Cutting length (L): 5-99999.99 mm

Cutting length increment: 0.1 mm

Cutting length tolerance: L ± 1% mm (material with no elasticity)

Production rate: 8000 pcs/h by 100 cutting length

Data library: 100 programs

Display: 7" color touchscreen, English / Chinese (other languages on request)

OEM: Yes

Power supply: AC 110-220V + 10%, 50/60 Hz

Dimensions: L 560 x W 510 x H 480 mm

Weight: 56 KG

• Versatile cutting machine, fast and straight cutting

• Quick changing tube guide, fully programmable, safe operation

• Designed for hard hollow tube and round cable

• Corrugated tube up to 30mm in O.D.

• Cable up to 3 x 6mm²
