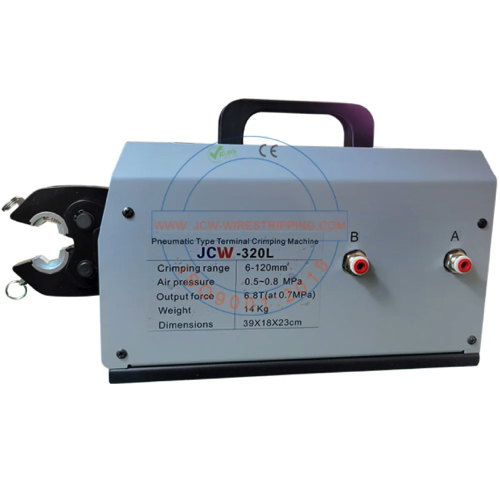

JCW JCW-320L Pneumatic Tubular Cable Lug ເຄື່ອງ Crimping (120 mm², 6.8 tons)

Function: Non-insulated terminal, copper tube lug, O-ring tubular terminal, Open barrel terminal, Fast change die set

Capacity: 120 mm²

Crimping force: 6.8 Tons

Crimp dies sets: 22 sets for selection

Air regulator: Yes

OEM: Yes

Activation: Foot pedal

Air supply: 0.5 - 0.8 MPa (clean and dry air)

Dimensions: L 390 x W 180 x H 230 mm

Weight: 14 KG

• RN & SC Battery Cable Lug Crimping Machine

• Lug range up to 120 mm²

• 68KN crimping force

• 22 sets of the crimp die sets

• Hexagon / Indent / Open barrel "B" type crimping

• Fast crimp die sets changeover
