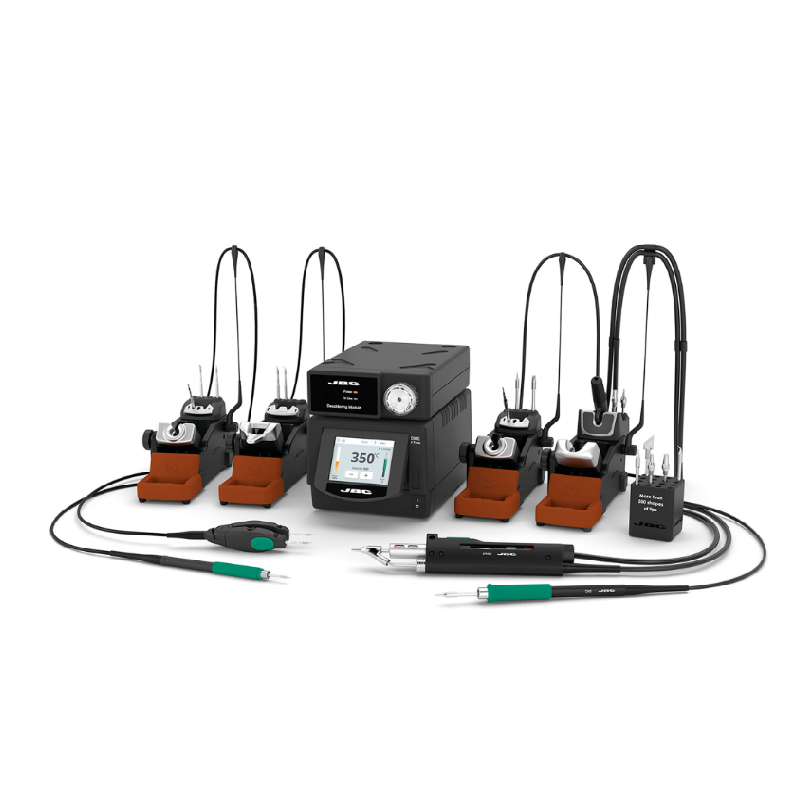

JBC DMPSE-2QB 4-Tool Rework Station (160W/tool, 90 - 450°C)

Peak power (Tool): 160W/Tool

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001F)

Vacuum: 75% / 570 mmHg / 22.4 inHg

Flow rate: 9 SLPM

Temperature accuracy: ±3 %

Temp. adjustment: ±50 ºC / ±90 ºF (Through station menu setting)

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <2 mV RMS

USB-A:

Firmware update

Graphics and profiles

Dino-Lite USB microscope connection

Compatible models: AM2011 and AM2111

USB-B: PC communications

FAE / Robot connector: Remote control or FAE Fume Extractor connection

ESD safe: Meet ANSI/ESD S20.20-2021

Control Unit: 232 x 148 x 120 mm / 12.79 kg / 9.13 x 5.83 x 4.72 in / 28.19 lb

Package: 495 x 415 x 395 mm / 17.91 kg./ 19.49 x 16.34 x 15.55 in / 39.48 lb.
