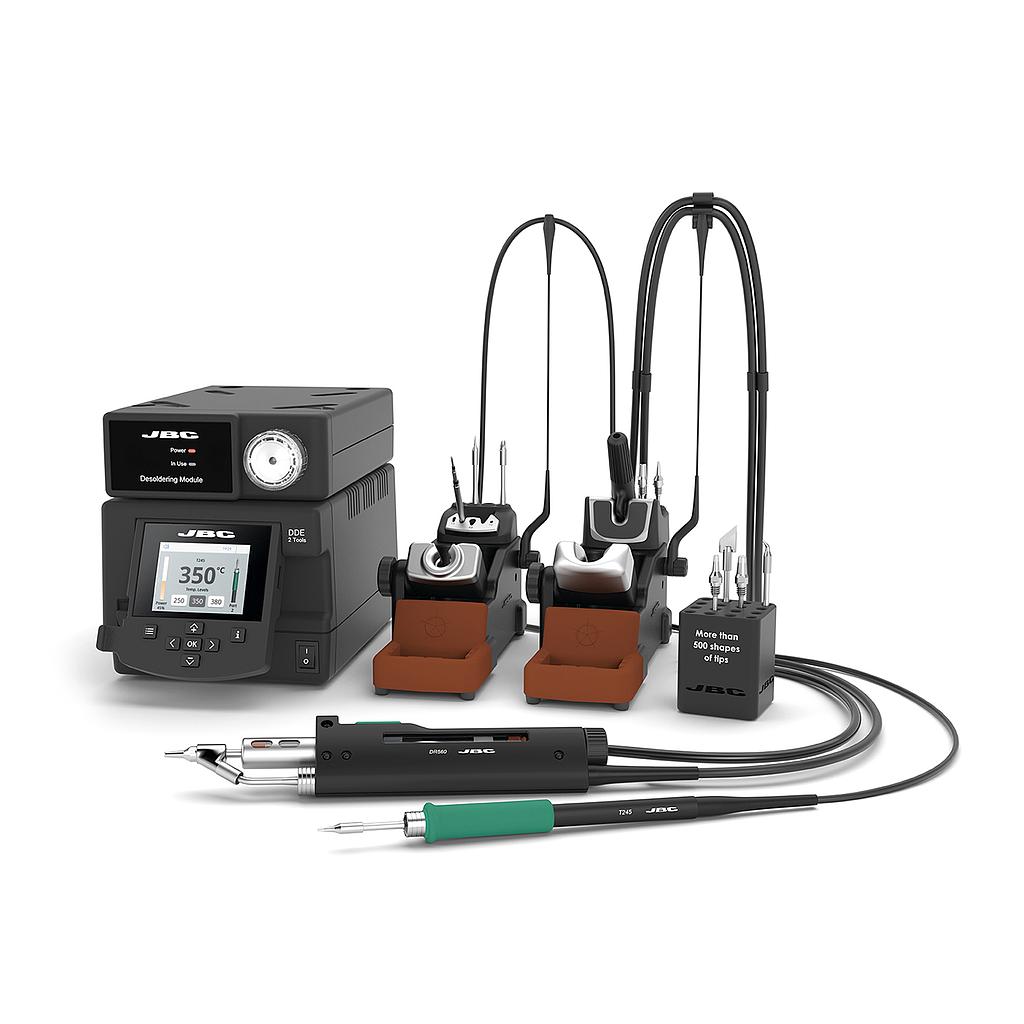

JBC DDSE-2QD 2-ເຄື່ອງ​ມື Rework (370W, 90 - 450°C)

Nominal Power: 370W

Peak power (Tool): 150W/Tool

Selectable temperature: 90 to 450 ºC / 190 to 840 ºF

Idle temp. stability (still air): ±1.5 ºC / ±3 ºF (Meets and exceeds IPC J-STD-001F)

Vacuum: 75% / 570 mmHg / 22.4 inHg

Flow rate: 9 SLPM

Temperature accuracy: ±3 %

Temp. adjustment: ±50 ºC / ±90 ºF (Through station menu setting)

Tip-to-ground resistance: <2 ohms

Tip-to-ground voltage: <2 mV RMS

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

FAE / Robot connector: Remote control or FAE Fume Extractor connection

ESD safe: Meet ANSI/ESD S20.20-2021

Control Unit: 232 x 148 x 120 mm / 8.67 kg / 9.13 x 5.83 x 4.72 in / 19.11 lb

Package: 525 x 318 x 347 mm / 12.40 kg./ 20.67 x 12.52 x 13.66 in / 27.34 lb.
