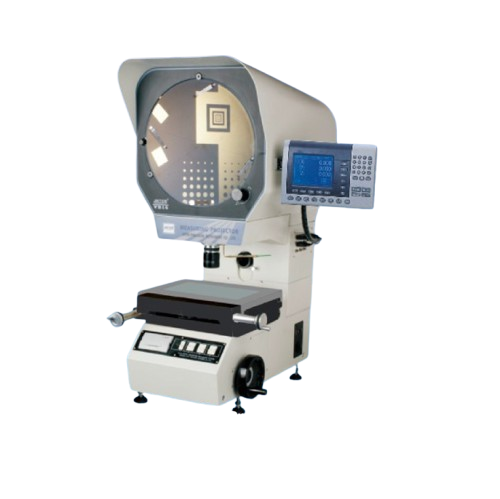

Jaten VB16-2515A ເຄື່ອງສະແດງໂປຣໄຟລ໌ (250x150x100mm)

Type: Reverse Image

Metal Stage Size: 408x308 mm

Glass Stage Size: 305x197 mm

Stage Travel: X and Y-axis: 250x150 mm

Stage Travel: Z-axis: 100mm (for focusing)

Accuracy: < 3 + L/200(um)

Resolution of X and Y-scale: 0.0005 mm

Screen: Diameter : 0330mm. Effective Range > 0300(with ·• "Reticle); Rotary Range: 0-360°; Resolution Rotary Indicator: 1' or 0.01

Digital Readout: DP 300Multifunctional Data Processing Svstem/RS232

Instrument Illumination: 24v/150w halogen lamp (adiustable)

Cooling Svstem: Forced Cooling (3-axis-fans)

Power Supply: AC110V/60Hz: 220V/SOHz. 400W

Dimension (DxWxH): 868X556X1163

Gross/Net Weight: 3201220Kg

Recommended Support Table Specifications: JTD-3015A/3020A:

Load Capacity: ≥250 kg

Table Dimensions (L X W X H): 780 X 550 X 430 mm
