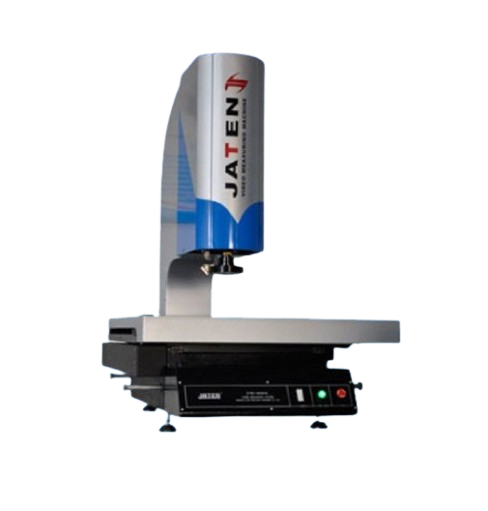

Jaten JTDVMS-5040(CNC) ເຄື່ອງມວດວັດດ້ວຍວິຊັນອັດຕະໂນມັດ (500x400x200mm)

Working Stage:

Metal Stage Size (rnm): 706x566

Glass Stage Size (rnm): 50x450

X, Y, Z-axis Travel Crom): 500x400x200

Drive System: All axes (x. Y, z) use motor-driven ball screw transmission

Dimensions (L X W X H) (mm): 960x750x1100

Data Measurement System:

Optical scale resolution: X, Y, Z axes: 0. 0005 mm

Data acquisition: Automatically sampled by computer

Data analysis: Handled by professional measurement software

X, Y axis indication error: ≤ (3 + L/200) µm

Imaging System:

Zoom Lens: 0.7 - 4.5X

Total video magnification: 30 - 190X

With optional 2X objecti'i'e lens: total magnification can reach 380X

"Illumination System: Continuously adjustable LED ring surface light and contour light. Brightness can be programmatically adjusted based on magnification

"

Motion System:

X, Y-axis motor speed: < 120 mmls

Z-axis motor speed: < 60 mm/s

Motor step size: 0. 4 mm/step

Motorresolution: 10 000 steps/rev

Recommended Support Table Dimensions (L X W X H): 800 X 700 X 730 mm
