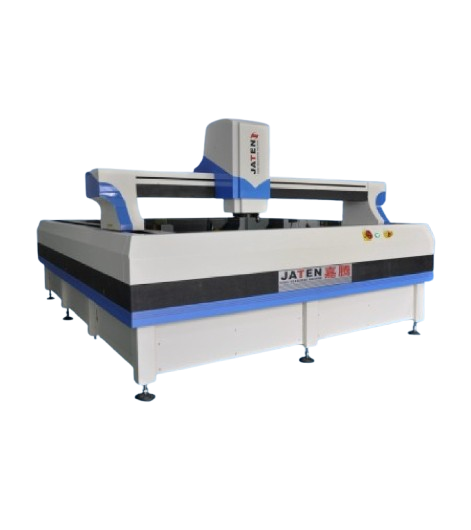

Model: 2.5D (+Probe)
X,Y,Z-axis Travel: 1600x1200x200m
X/Y-axis Accuracy: ≤3+L/200(µm)
Z-axis Accuracy: ≤4+L/200(µm)
X/Y/Z 3-axis Linear Scale: RSF linear scale, Resolution: 0.0005mm
Repeatability: ±2µm
Video System:
CCD: TEO 1 / 2' ' Color CCD Camera
Zoom Lens: 6.5X Motorized coaxial zoom lens
Illumination:
Contour: Adjustable 256-grade LED Cold illumination
Surface: Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination
2.5D Measurement(+Probe): 2.5D Module and UK Renishaw MCP-K2 Touch Probe
Measuring Software: Quick Measuring 4.1/4.2
Best Working Environment: Temperature 20°C±3°C, Humidity 45% -75%, isolated from the external vibration source
Power Source: 220V ±10%,180V-260V(AC),SOHZ
Max. load Capacity: 30Kg
Dimension: 2600x2100x1700
Net Weight: 4200Kg
