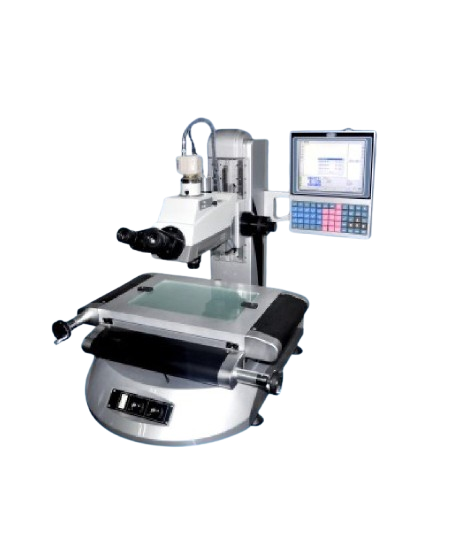

Jaten GX2515-IIN ເຄື່ອງມອງຂະໜາດນ້ອຍ (250 x 150)

Worktable

Metal Stage Size (mm): 408X308

Glass Stage Size (mm): 306X196

Travel Range (mm): 250X150

External Dime sions(LXW;<H, mm: 929X612X1082

Transmission System: X, Y Axes: Linear shaft transmission Z Axis: Gear and rack transmission

Data Measurement System:

Optical Scale Resolution (X, Y, Z Axes): 0.0005 mm Coordinate Indication Error (X, Y): ≤ (3 + L/200) µm

Z-axis Travel: 150 mm (focusing)

Imaging System

Camera: High-resolution color CCD camera

Zoom Lens: 0.7 - 4.5X Total Video Magnification: 30 - 230X With Optional 2X Lens Attachment: Up to 440X

Illumination System

Transmitted Light Source: 24V/20Whalogen tungsten lamp

Reflected Light Source: 12V LED ring light with laser spot positioning
