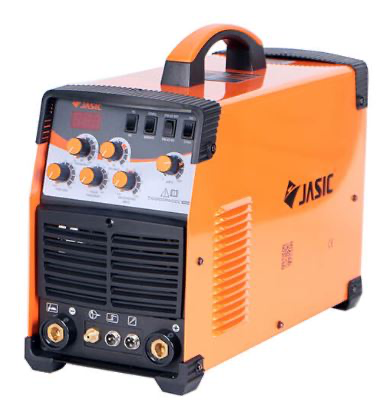

JASIC TIG200PACDC E201 II JET20 ເຄື່ອງເຊື່ອມ TIG

Rated input voltage (V): 1 pha AC230V±15%; 50Hz

Rated power (KVA): TIG 6.0; MMA 7.5

Rated voltage V): TIG: 18; MMA 26.4

Welding current adjustment range (A): TIG: 10-200; MMA: 10-160

Duty cycle (%): TIG: 200A@25%; MMA:160@30%

Arc force current adjustment range (A): 0~40

Initial arc force current adjustment range (A): 0-80

Output AC pulse frequency (Hz): 20~250

Pulse frequency (Hz): DC 0.5-200, AC 0.5-25

No-load voltage: 60 V

Pre-flow time (s): 0-5

Gas delay time (s): 0-15

Up/down slope (s): 0-15

Arc ignition type: HF

Power factor (cosφ): 0.7

Efficiency: 80%

Protection class: IP21S

Insulation class: H
