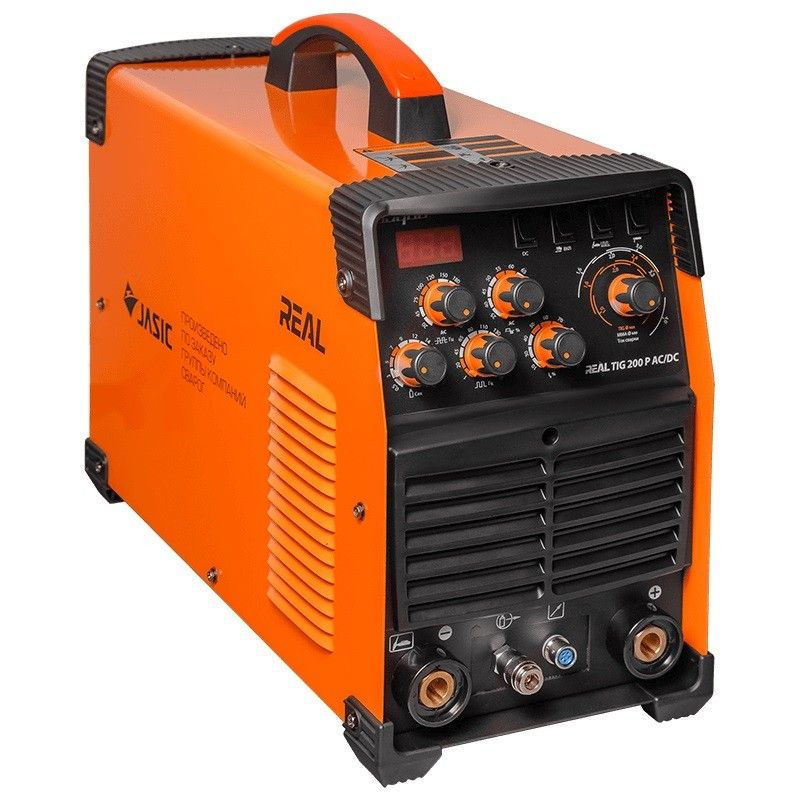

JASIC TIG200 PAC/DC (E20101) ເຄື່ອງເຊື່ອມ TIG

Rated input voltage: AC220V±15%; 50/60Hz

Rated input current: 16A

Rated power : 6KVA

Rated power (KVA): TIG: 7.3 /Stick welding: MMA: 9.2

Welding current/rated output voltage: (A/V): TIG: 200/18; Stick welding: 160/26.4

Welding current adjustment range (A): TIG: 5～200; MMA: 10～160

Load Cycle Imax (40°C) (%): TIG: 25%; MMA: 30%

No-load voltage: 56 V

Pre-flow time (s): 0.5

Output AC pulse frequency (Hz): 20-250

Cleaning with (%): 15-50

Pulse period (%): 50

Gas delay time (s): 0.5-20

Efficiency: 85%

Power factor (cosφ): 0.7

Protection class: IP21S

Insulation class: B

Arc priming type: HF
