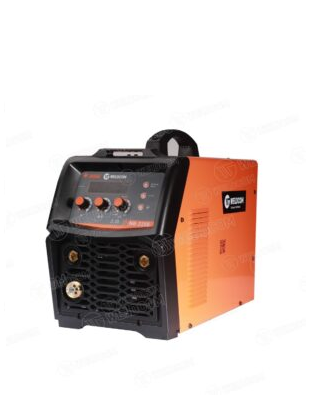

JASIC NB-220E ເຄື່ອງເຊື່ອມ MIG

Rated input voltage: 1 phase AC220V ±15% 50/60Hz

Rated power: 8.5 KVA

Stick welding current adjustment range: 20-180A

MIG welding current adjustment range: 30-220A

Maximum welding current/voltage: 220A/25V

Voltage adjustment range: 13-26 V

Wire output speed: 2-24m/min

Load cycle:25%

Efficiency: 80%

Power factor: 0.7

Welding mode: Mig welding with gas/Stick welding

Protection level: IP21S

Insulation level: F

Gas Mig welding wire diameter: 0.8, 0.9, 1.0 mm

Welding rod diameter: 1.6-3.2mm

Welding wire coil weight: 15 kg

Dimensions: ~ 620x370x490 mm

Weight: ~ 14.8 kg
