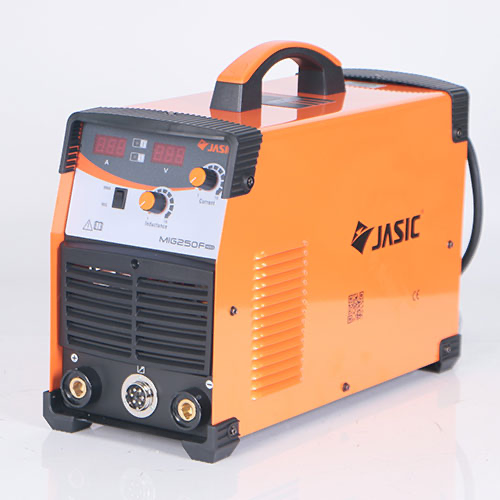

JASIC MIG250F N253 ເຄື່ອງເຊື່ອມ MIG

Rated input voltage (V): three-phase AC380V±15%; 50 Hz

Rated input current: 12A

Rated voltage: 8.4 KVA

Rated output in MIG mode (A/V): 50/16.5 – 270/27.5

Load cycle: 60%

No-load voltage: 52 V

Stick welding current adjustment range: 20-220A

Efficiency: 85%

Power factor: 0.93

Protection class: IP21S

Insulation class: F

Wire supply type: Separate wire supply

Welding current diameter: 0.8-1.2 mm

Weight of MIG welding wire coil: 15 kg

Wire feed speed: 1.5-18m/min

Cooling type: air cooled

Accessories

Wire feeder with 5m welding cable

24KD welding gun 3m long

Cooling clamp with 3m welding cable

CO2 meter
