Jain WIOSP Solar Power Flow Monitoring System

Name: Jain WIOSP Solar Power Flow Monitoring System
Brand: JAIN

ຜູ້ຜະລິດJAIN(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelWIOSP

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Panel : Octagon, Height 3.0M, Diameter 0.25M, Stainless Steel 304
Ultrasonic Flowmeter : Clamp-On, Transit-Time, 12-24VDC, 5W
Solar Power Module : 70W, Round
Batrtery : 3A, 15V Rechargeable
Modem : CDMA Wireless
Pressure : 0-20Kg/cm2

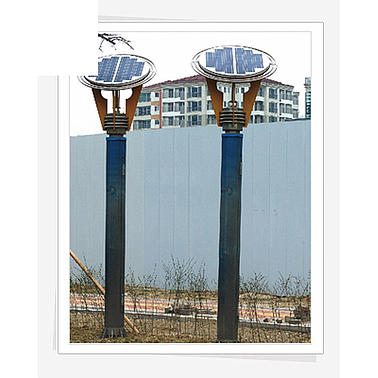

Flow Monitoring Systems installe around the city must have speciall designed feature to make street beautiful and can eliminate any complains from citizen. The system use clamp-on ultrasonic flowmeter and use solar power. Also, the design is beautiful as sculpture to make street clean and beautiful,so citizen do not complain when install the panel, even at front of shop. The panel is 3M tall and octagon shape with 0.25M diameter. Also, the panel use wireless CDMA communication to reduce any installation cost.

The panel is consisted of

Panel (height 3.0M, diameter 0.25M octagon, STS 2.0t)	1ea
Clamp-On Ultrasonic Flowmeter Xonic 100N	1set
Solar Power Module (70W, Round)	1ea
Rechargeable Battery (3A, 15V)	4ea
Recharge Controller	1ea
CDMA Modem	1ea
Pressure Transmitter (0-20Kg/cm2)	1ea

Specification

1. Panel : Octagon, Height 3.0M, Diameter 0.25M, Stainless Steel 304

2. Ultrasonic Flowmeter : Clamp-On, Transit-Time, 12-24VDC, 5W

3. Solar Power Module : 70W, Round

4. Batrtery : 3A, 15V Rechargeable

5. Modem : CDMA Wireless

6. Pressure : 0-20Kg/cm2

Main Function

1. Solar Power

2. Beautiful Panel as sculpture

3. Wireless CDMA communication

4. Operate for 30 days without solar energy
