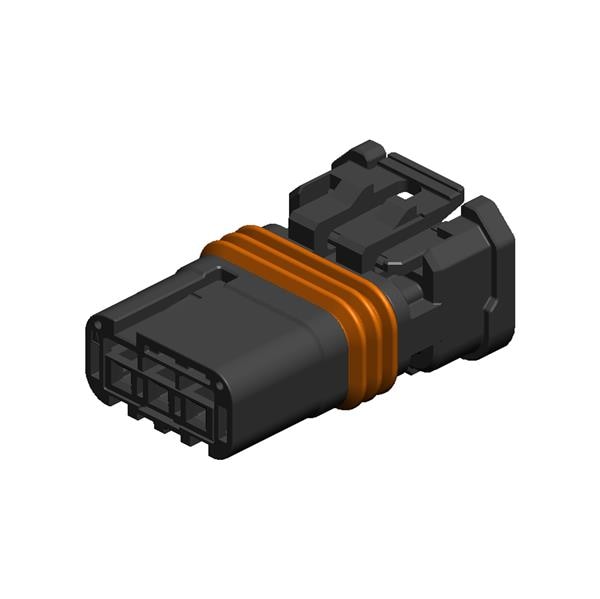

JAE Electronics MX80A03SZ1A ກອງຢູ່ສາຍສອກເກດຂະໜາດກະທົບ 3ຕຳແໜ່ງ ລະຫັດກອງ A

Pitch: 2.54 mm (0.1 in)

Gender: Receptacle (Female)

Dimensions: 20.25 mm x 11.45 mm x 9.1 mm

REACH - SVHC: Details

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 17 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 24 AWG to 26 AWG

Termination Style: Crimp

Ingress Protection: IPX7

Number of Positions: 3 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
