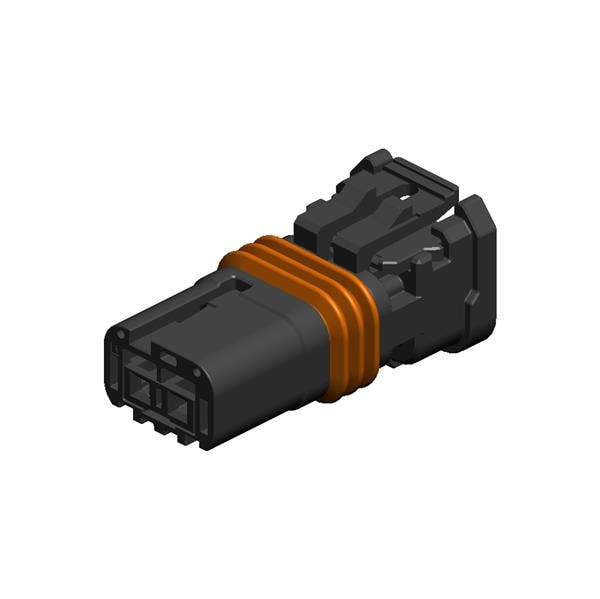

JAE Electronics MX80A02SZ1A ການເຊື່ອມຕໍ່ກະແຈບໍ່ຄອມແພັກ 2 ຕໍ່ຕຳແໜ່ງ MX80

Pitch: 2.54 mm (0.1 in)

Gender: Receptacle (Female)

Dimensions: 20.25 mm x 8.9 mm x 9.1 mm

Insulation: Insulated

REACH - SVHC: Details

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 17 AWG

Wire Gauge Min: 26 AWG

Contact Plating: Tin

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Crimp

Ingress Protection: IPX7

Number of Positions: 2 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
