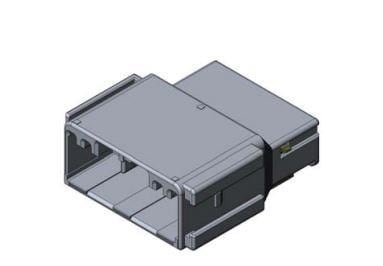

JAE Electronics MX34012PF1 ກອງສາຍສະບັບ

Color: Gray

Pitch: 2.2 mm (0.087 in)

Width: 34.8 mm

Gender: Plug (Male)

Height: 13.4 mm

Length: 19.1 mm

Dimensions: 19.1 mm x 34.8 mm x 13.4 mm

Insulation: Insulated

Unit Weight: 6.230 g

Contact Type: Pin (Male)

Contact Gender: Without Pin Contacts

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Noryl

Termination Style: Crimp

Number of Positions: 12 Position

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
