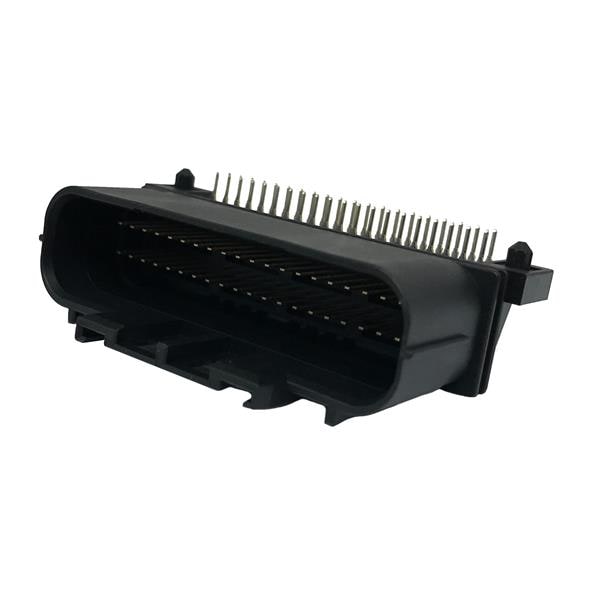

JAE Electronics MX23A40NF1 ຝາຫົວຫນ້າ 40ຕໍ່ຕຳແໜ່ງ SKT HOUSING

Color: Black

Pitch: 2.5 mm (0.098 in)

Gender: Pin (Male)

Length: 58.5 mm

Row Spacing: 4.4 mm

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Right Angle

Mounting Style: Through Hole

Number of Rows: 2 Row

Wire Gauge Max: 16 AWG

Wire Gauge Min: 22 AWG

Contact Plating: Tin

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 22 AWG to 16 AWG

Termination Style: Solder Pin

Number of Positions: 40 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
