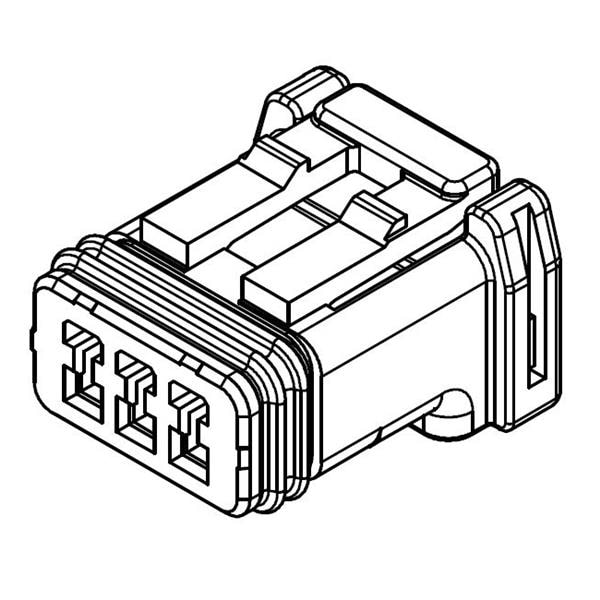

JAE Electronics MX19A003S51 ກອງສະບັບສາຍສະບັບ 3 ຕຳແໜ່ງ

Pitch: 2.54 mm (0.1 in)

Gender: Receptacle (Female)

Unit Weight: 1.458 g

Contact Type: Socket (Female)

Contact Gender: Socket (Female)

Current Rating: 5 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Wire Gauge Max: 20 AWG

Wire Gauge Min: 22 AWG

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 22 AWG to 20 AWG

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 3 Position

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
