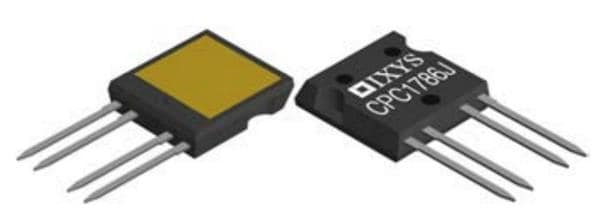

IXYS CPC1786J ອິສເລເທດ DC ເທົ່ານັ້ນ ໂພນເດີດຽວ i4-PAC

Width: 5.029 mm (0.198 in)

Height: 20.879 mm (0.822 in)

Length: 19.914 mm (0.784 in)

Output Type: MOSFET

Unit Weight: 7.044 g

Contact Form: SPST (1 Form A)

Input Current: 100 mA

Mounting Style: PCB Mount

Termination Style: Solder Pin

Relay Contact Form: 1 Form A (SPST-NO)

Load Current Rating: 650 mA

Load Voltage Rating: 1 kVDC

Control Voltage Range: 900 mVDC to 1.56 VDC

Pd - Power Dissipation: 150 mW

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Input to Output Isolation Method: Optocoupler
