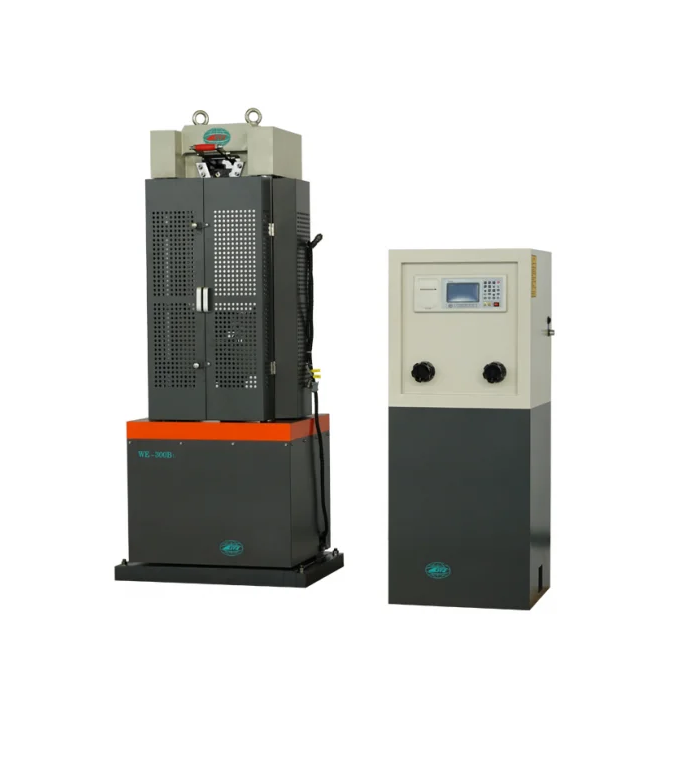

IWINTESTING WE-1000B ເຄື່ອງທົດສອບວັດສະດຸທົ່ວໄປແບບໄຟຟ້າ-ໄຮໂດຼລິກ (1000 kN)

Maximum test force: 1000 kN

Test machine accuracy level: Level 1

Test force collection method: Oil pressure sensor

Piston stroke: 200 mm

Clamping method: Hydraulic

Test control method: Manual adjustment

Compression test space: 600 mm

Tensile test space: 700 mm

Machine power: 1.5 kW

Compression platen: φ225 mm

Round sample clamping range: φ14 ~ 40 mm

Flat specimen clamping range: 0 ~ 40 mm

Number of columns: 6 columns

Mainframe dimensions: 940 x 640 x 2,250 mm

Host weight: 2,800 kg

Control cabinet size: 610 x 590 x 1,370 mm

Control cabinet weight: 150 kg

PRODUCT DETAILS

Host four-column double screw test space structure.

High-speed Ethernet communication interface communicates with PC.

Standard database management test data.

High-strength, high-toughness and beautiful protective net for safety protection.

Manual semi-closed jaws, high strength, optional hydraulic jaws.
