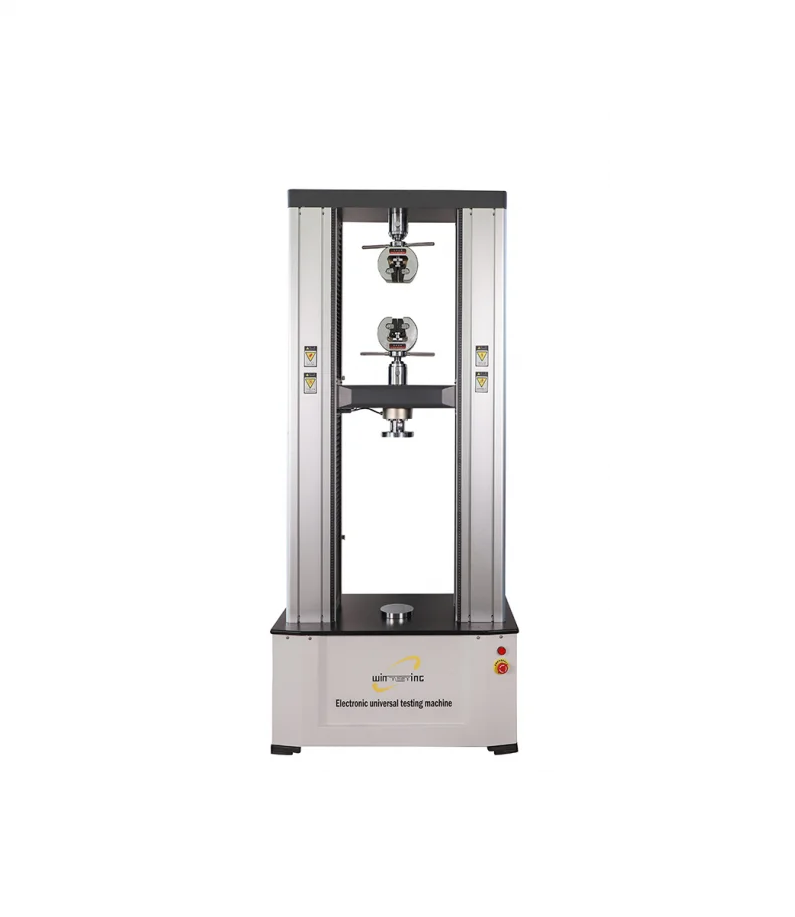

IWINTESTING WDW-100 ເຄື່ອງທົດສອບແຮງດຶງກົນຈັກທົ່ວໄປ (100kN)

Maximum test force (kN): 100

Testing machine accuracy level: Level 1

Test force collection method: Wheel spoke load sensor

Piston stroke (mm): 150

Clamping way: hydraulic pressure

Test control mode: Microcomputer servo control

Compression test space (mm): 600

Tensile test space (mm): 700

Power (kW): 1.1

Compression disc (mm): Φ148

Clamping range of round sample (mm): Φ6-12,Φ12-20

Clamping range of flat sample (mm): 0-10

Number of upright posts (lead screws): 6column

Overall dimension of main engine (mm): 620*520*1,723

Weight of main engine (kg): 1,620

Size of control cabinet (mm): 1,010*640*840

Weight of control cabinet (kg): 150

PRODUCT DETAILS

This series of testing machine is loaded by hydraulic pressure, and the electro-hydraulic servo control technology is used to conduct tensile, compression, bending, shear and other tests on metallic and non-metallic materials, showing a variety of curves, forces, deformation, displacement and other closed-loop control methods, which can be switched freely in the test. Automatic recording of stored data.
