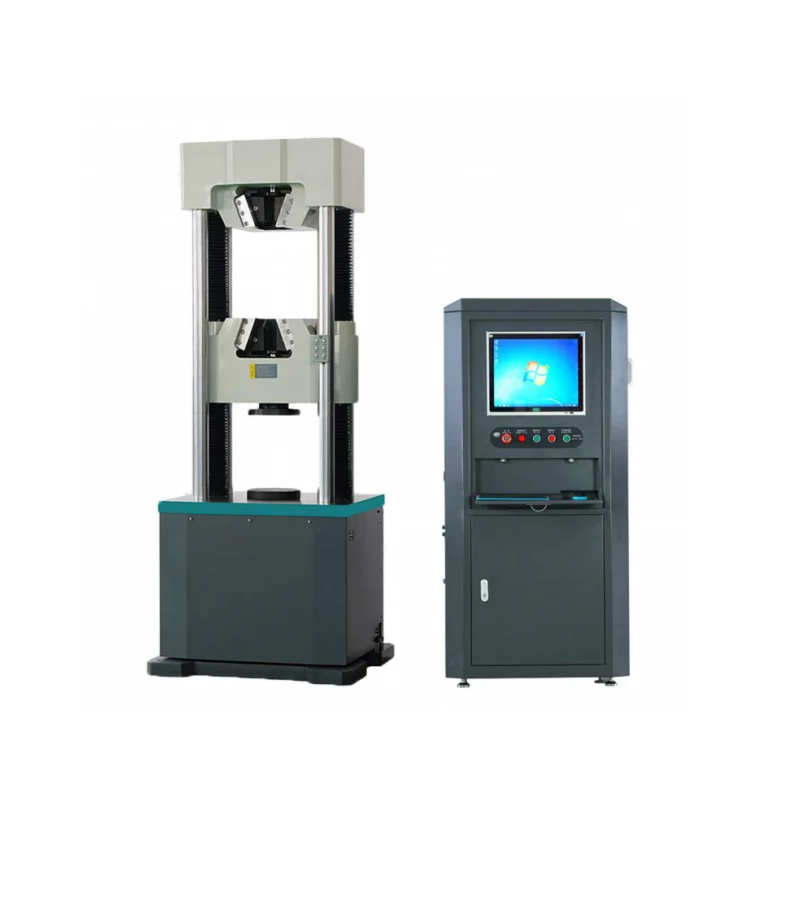

IWINTESTING WAW-300B ເຄື່ອງທົດສອບສາກົນ (300kN)

Maximum test force (kN): 300

Accuracy level: 1

Collection method: Spoke load sensor

Piston stroke (mm): 200

Clamping method: Hydraulic

Test control method: Microcomputer servo control

Compression test space (mm): 600

Tensile test space (mm): 700

Total power (kW): 1.5

Compression platen (mm): Φ148

Round sample clamping range (mm): Φ10–30

Flat sample clamping range (mm): 0–10

Bending fulcrum span (mm): 50–300

Bending heart / stick diameter (mm): 50/50

Number of columns (screws): 6 columns

Mainframe dimensions (mm): 810 × 560 × 1,910

Host weight (kg): ≈1,620

Control cabinet size (mm): 1,010 × 640 × 840

Control cabinet weight (kg): 150

Features

Using Italian gear pump, spoke type pressure sensor with higher accuracy, including extensometer

Using Kawashima reducer, low noise

It adopts semi-closed built-in hydraulic jaws with high strength

The test adopts a microcomputer automatic control method, which has the functions of stress rate, strain rate, and stress retention and strain retention; 5. Host four-column double-screw test space structure;

High-strength, high-toughness, and beautiful protective net for safety protection.
