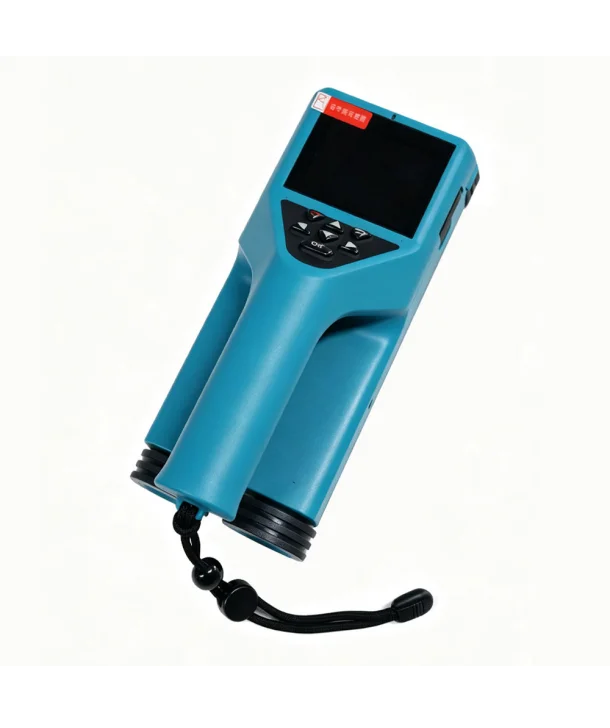

IWINTESTING R800 ເຄື່ອງກວດຈັບຕົວຊອກຫາແຖບເຫຼັກ (∅6–∅50 mm)

Rebar diameter setting range (mm): ∅6–∅50 mm

Host parameters

Screen size: 2.8 inch

Resolution: 240 × 320

Dimensions: 220 × 93 × 110 mm

Weight: 0.6 kg

Small measurement range (mm): 1–80 mm

Large measurement range (mm): 1–180 mm

Maximum thickness of protective layer

±1 mm: 1–59 mm

±2 mm: 60–100 mm

±4 mm: 100–180 mm

Data transmission method: TF card

Power supply: Lithium battery

Rebar diameter estimation range: ∅6–∅32 mm

Storage: 2,000 components × 1,000 measurement points

Diameter indication maximum error: ±1 mm

Profile measurement function: stand by

Grid measurement function: stand by

Waveform measurement function: stand by

Probe self-calibration: stand by

Working environment requirements

Temperature: −10°C to +40°C

Humidity: <90% RH

Other requirements:

No corrosive gases in the air

No strong electromagnetic field interference. There should be no large vibration and shock

Avoid direct sunlight

Features

1.The thickness detection mode displays the position of the reinforcing bar intuitively and accurately, and simultaneously displays the thickness and the spacing of the reinforcing bars;

2.The thickness detection mode can automatically store the thickness and spacing, and the detection efficiency is greatly improved;

3.The waveform scanning mode visually displays the distribution of steel bars, which makes the detection and analysis of dense steel bars more intuitive;

4.The waveform scanning mode simultaneously displays the determined thickness and spacing of the protective layer of the steel bar;

5.It can detect the middle position of two steel bars, aiming frame and indicator light, which is convenient for punching and core;

6.The instrument automatically stores the calibration value to achieve fast measurement,eliminating the trouble of each calibration;

7.Boundless mesh/section scanning, waveform scanning can measure up to 6m in length;

8.TF card storage, large capacity, intuitive and convenient to transfer;

9.2.8-inch high-resolution color LCD screen;

10.One-piece design, small size, light weight, easy to carry;

11.PC professional data analysis software, data processing and report generation is easy to complete;
