IWINTESTING IWIN-MPIT01 ເຄື່ອງທົດສອບ MPI (50~200mm)

Standard Number: ISO 3059, ISO 9934

Power Supply: AC 220V 50Hz; DC 12V

Charging Power: AC 220V 50Hz

Battery: MF12–7.2H

Working Current: AC 1.4A; DC 1.7A

Charging Time: 8–15 h

Battery Life: More than 6 hours

Working Method: 2 min. ON, 2 min. OFF

Pole Distance: 50–200 mm

Lifting Power AC: >5.5 kg

Lifting Power DC: >25 kg

Yoke Weight: 3.2 kg

Battery Weight: 2.9 kg

Yoke Dimensions (mm): 208 × 52 × 146

Battery Dimensions (mm): 160 × 100 × 70

Charger Dimensions (mm): 80 × 60 × 40

Product description

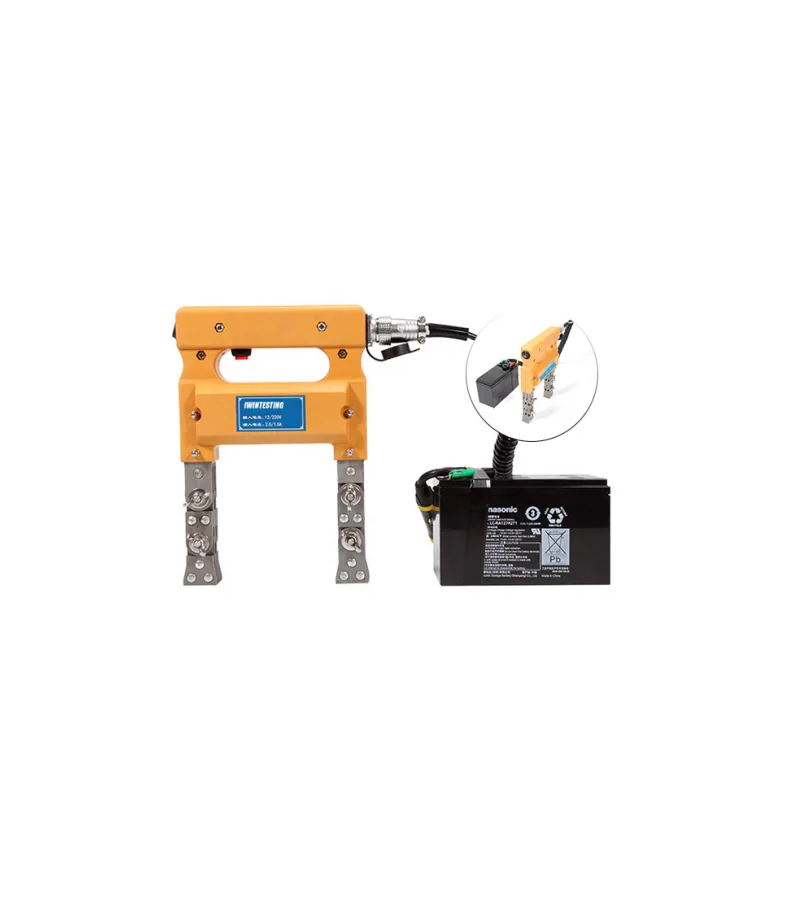

Handheld Magnetic particle detector is a small portable non-destructive testing instrument with clear crack display, reliable performance, stable and easy operation. The instrument uses a coil to be wound directly on the probe to generate an induced magnetic field to magnetize the workpiece. The device has small size, light weight, large lifting force and adjustable movable joints. Suitable for flaw detection of flat welds, fillet welds, steel pipes, pressure vessels, pipes, shafts and complex shapes.
