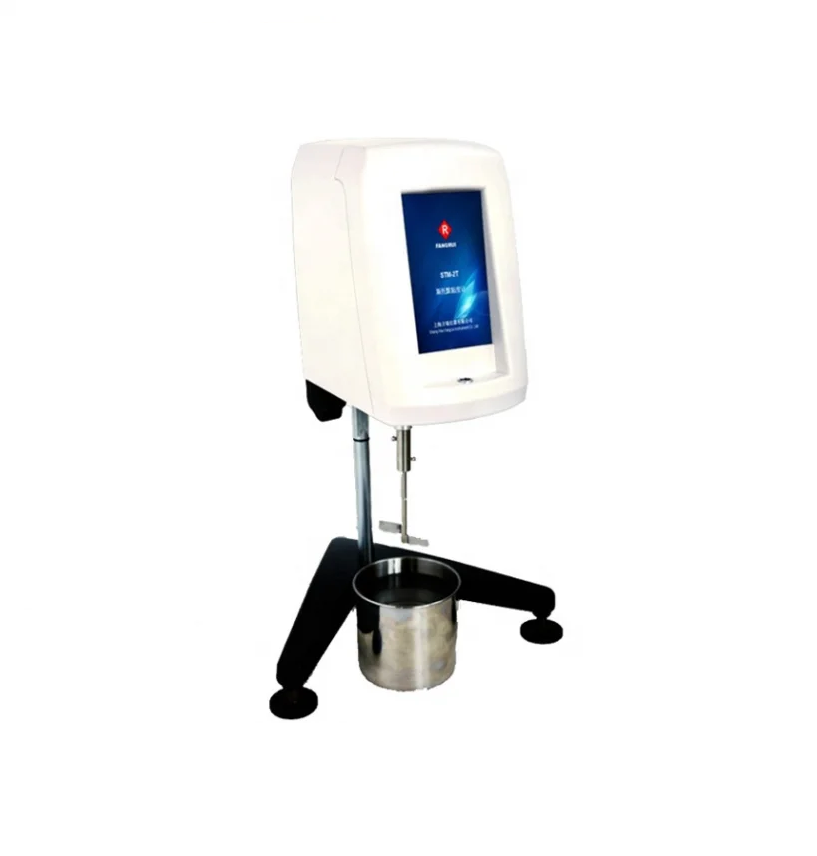

IWINTESTING IWIN-5T ເຄື່ອງວັດຄວາມໜືດໃນຫ້ອງທົດລອງ (1–100,000 mPa·s)

Control / Display Mode: 5-inch color touchscreen

Speed (r/min): 3 / 6 / 12 / 30 / 60

Measuring Range (mPa·s): 1–100,000

Rotor: 1, 2, 3, 4# (standard); 0# rotor (standard)

Measurement Error (Newtonian Liquid): ±1%

Repetitive Error (Newtonian Liquid): ±0.5%

Timing Function: Standard

Temperature Measurement Function: Standard temperature sensor interface; temperature sensor (optional)

Automatic Scanning Function: Automatic scanning and recommendation of the best combination of rotor and speed

According to Maximum Measuring Range: Rotor and speed are automatically combined according to the selected viscosity range

Shear / Shear Rate Display: Standard

Automatic Display of Kinematic Viscosity: Requires input of sample density

Self-Built Measurement Program: Up to 30 groups can be saved, including rotor, rotational speed, temperature, time, etc.

Measurement Result Storage: Up to 30 sets of data, including viscosity, temperature, rotor speed, shear rate, shear stress, time, density, kinematic viscosity, etc.

Viscosity Curve: Real-time display of viscosity curve

Print Function: Data and curves can be printed (standard print interface; printer optional)

Data Output Interface: Standard

Constant Temperature Parts: Optional (viscometer constant-temperature bath, thermostatic cup, etc.)

Working Power Supply: Wide working voltage (110 V / 60 Hz or 220 V / 50 Hz)

Overall Dimensions: 300 × 300 × 450 mm

Features

Self-built 30 groups of test program to help users to quickly and accurately obtain the viscosity and the related data of the sample.5 inches large color touch screen can be comprehensive, vividly show various parameters and working conditions. With measuring parameters, display more rich in content, operation is convenient, intuitive, high measurement precision, reading speed stability, strong anti-jamming ability, wide working voltage and other obvious advantages.
