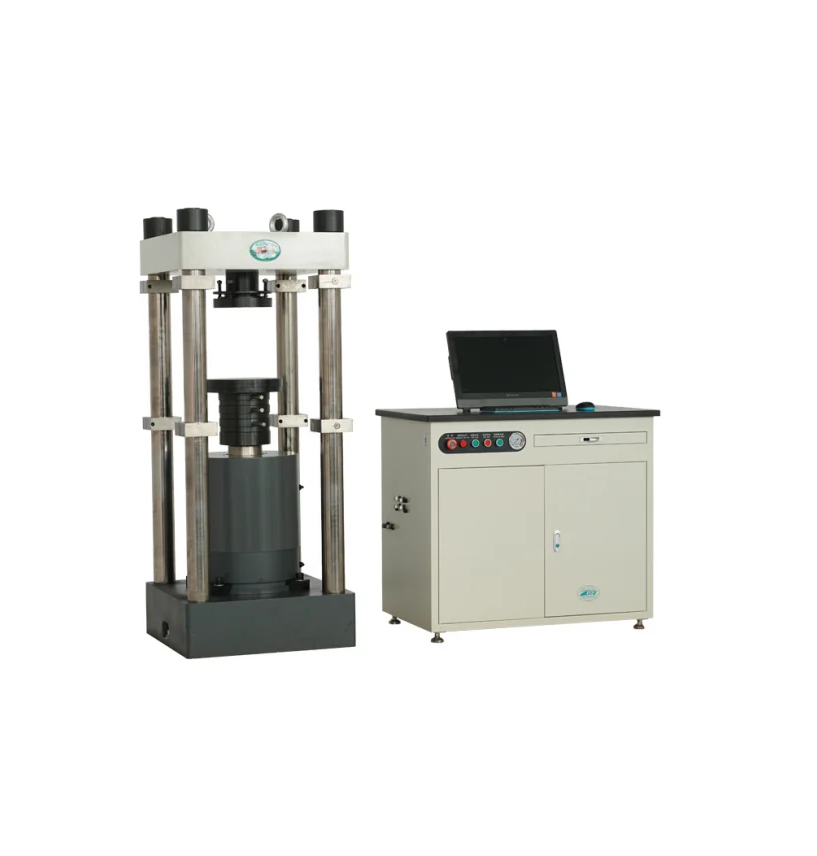

IWINTESTING HYE2000C ເຄື່ອງທົດສອບການບີບອັດ Servo ໄມໂຄຣຄອມພິວເຕີ (2,000kN)

Maximum Test Force (kN): 2,000

Test Accuracy: Level 1 / Grade 0.5

Measurement Resolution: 1%–100% FS (full range, undivided)

Main Structure Form: Four-column

Concrete (Rock) Elastic Modulus: Scalable configuration

Effective Distance Between Columns (mm): 430

Distance Between Upper and Lower Platens (mm): 410

Adjustment Between Upper and Lower Platens: Cylinder adjustment, block adjustment

Upper and Lower Platen Size: Φ298

Piston Stroke (mm): 200

Piston Moving Displacement Speed (mm/min): 0–60

Test Force Loading Rate Range: 0.02%–2% FS/s

Piston Motion Direction Control: Two-way cylinder

Mainframe Dimensions (mm): 650 × 650 × 1,620

Control Cabinet Dimensions (mm): 985 × 600 × 950

Total Power (kW): 2.5 (AC 380 V, 50 Hz)

Weight: 1,600 kg

Features

The testing machine is a hydraulic servo compression pressure testing machine with closed-loop control, with constant stress control and load holding function.

Using imported servo valve, the response is fast and the control precision is high. Within the allowable range of the machine, the user can arbitrarily set the loading speed according to the requirements of the experiment.

The load cell adopts load sensor, which can ensure the accuracy and reliability of the test accuracy.

The imported low-noise high-pressure oil pump can make the workplace have a quiet environment.

The hydraulic system adopts air-cooling device, which is suitable for continuous operation for a long time.

Multiple displacement (or deformation) measurement channels can be expanded according to user requirements.
