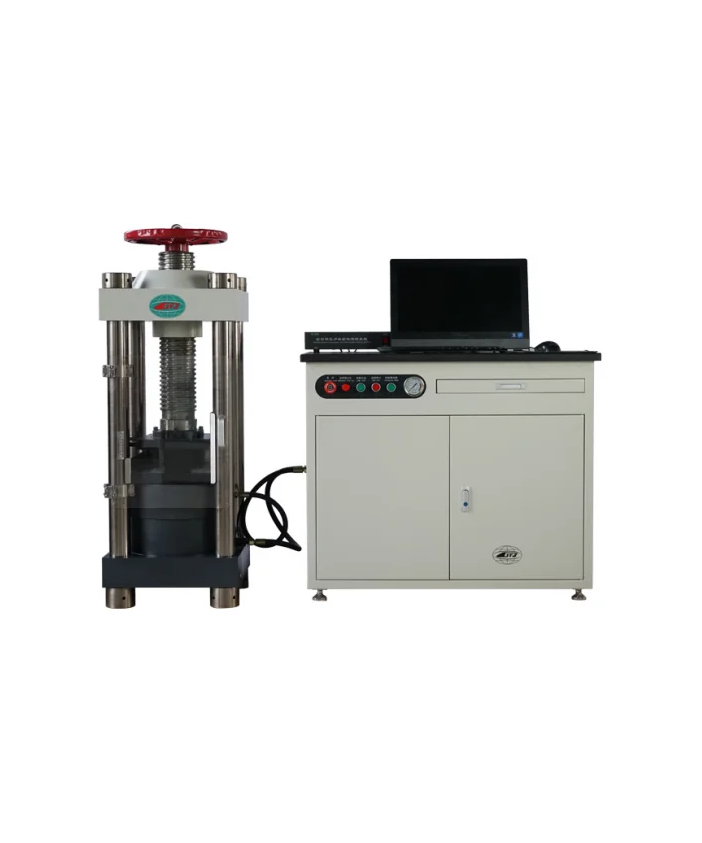

IWINTESTING HYE2000A ເຄື່ອງທົດສອບການບີບອັດ Servo ໄມໂຄຣຄອມພິວເຕີ

Test Accuracy: Level 1

Space Adjustment Method: Manual screw adjustment

Piston Stroke (mm): 80

Sensor Type: Oil pressure

Maximum Spacing Between Two Pressure Platens (mm): 350

Upper Platen Size (mm): Φ225

Lower Platen Size (mm): Φ295

Motor Power (kW): 0.75

Mainframe Dimensions (mm): 985 × 600 × 800

Machine Weight (kg): 900

PRODUCT DETAILS

Using Siemens motor, torque and speed are stable.

Automatic servo measurement and control system, the data is accurate and reliable.

Built-in radial piston oil pump, stable output and low noise.
