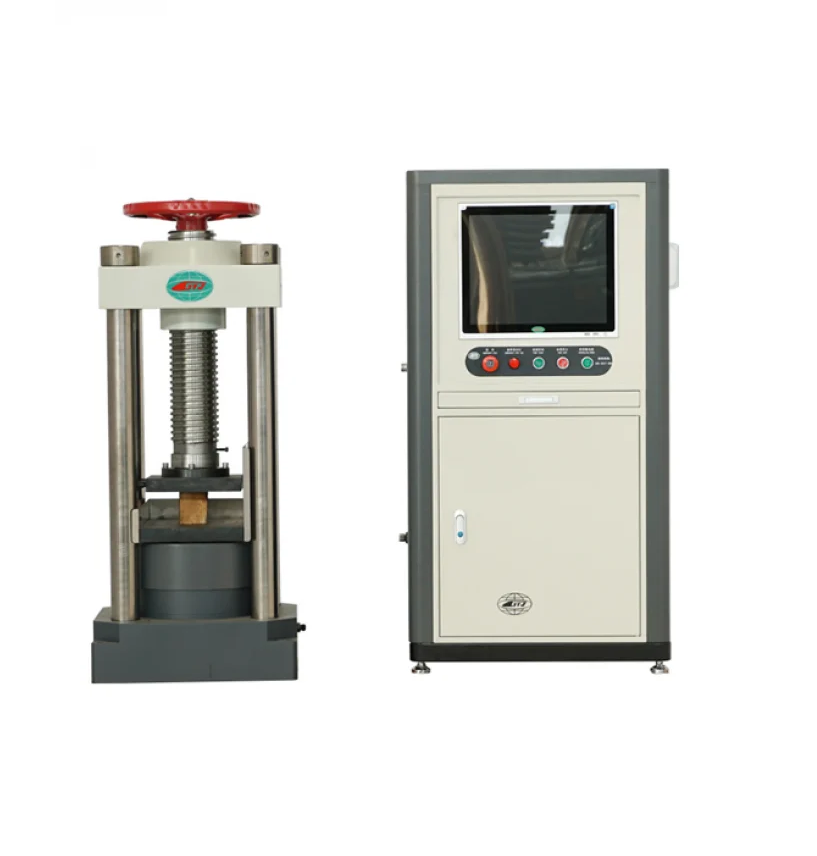

IWINTESTING HYE2000 ເຄື່ອງທົດສອບການບີບອັດ Servo ໄມໂຄຣຄອມພິວເຕີ (80mm)

Test Accuracy: Level 1

Space Adjustment Method: Pad adjustment

Piston Stroke (mm): 80

Sensor Type: Oil pressure

Maximum Spacing Between Two Pressure Platens (mm): 350

Upper Platen Size (mm): Φ225

Lower Platen Size (mm): Φ295

Motor Power (kW): 0.75

Mainframe Dimensions (mm): 900 × 400 × 1,250

Machine Weight (kg): 920

Features

The series of test machines are hydraulically powered, using electro-hydraulic servo control technology rock, mortar, brick, concrete and other building materials to test the mechanical properties of compression, showing the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.
