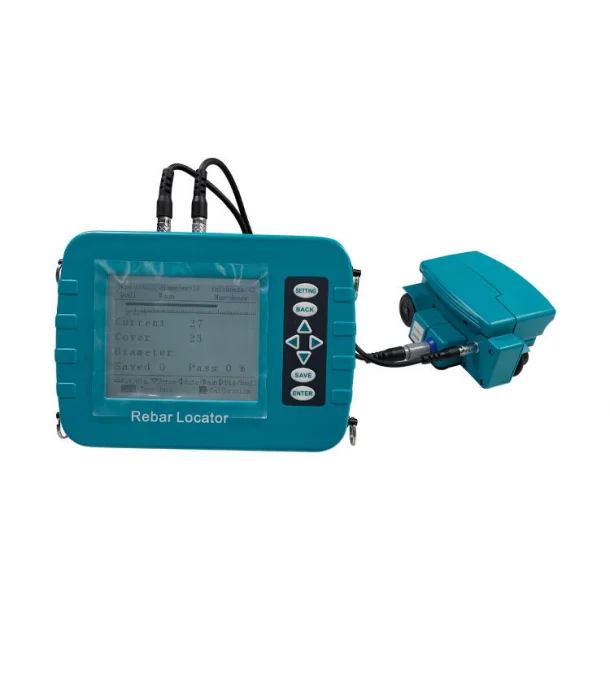

IWINTESTING GTJ-RBL ເຄື່ອງຊອກຫາເຫຼັກເສີມ (6–50 mm)

Applicable range of protective layer thickness: Φ6–Φ50 mm

The first range: 6–90 mm

The second range: 6–180 mm

Maximum allowable error of protective layer:

±1 mm: 6–79 mm

±2 mm: 80–119 mm

±4 mm: 120–180 mm

The range of application of diameter estimation: Φ6–Φ32 mm

The diameter indicates the maximum error: ±1 specification

Grid section: Non-support

Storage capacity: 2,000 components × 1,000 measurement points

Data transmission mode: USB

Power supply mode: Lithium battery

Host parameters:

Waterproof rating: IP65

Screen size: 5 inch

Resolution: 320 × 240

Dimensions: 195 × 140 × 45 mm

Weight: 0.8 kg

Power supply: Large-capacity lithium battery; operating time >18 hours

Operational reliability: Temperature: −10°C to +40°C; Humidity: <90% RH

Other requirements:

No corrosive gases in the air

No strong electromagnetic interference

Avoid severe impact or vibration

Avoid direct sunlight

Packaging specifications:

Material: Engineering plastic

Dimensions: 420 × 140 × 335 mm

Weight: 5.5 kg

Features

New upgrade, the use of three shell design, waterproof, dustproof, shockproof.

Large screen high resolution LCD screen, the interface has Chinese tips, display more content more intuitive.

Built-in large capacity memory card, storage capacity new upgrade.

USB transmission simulates the host as a U disk, and reading data is as simple as a U disk.

Protective layer thickness and reinforcement signal image real-time display, minimum automatic lock.

The double-range working mode can effectively ensure the detection accuracy and the maximum detection depth.

Automatic storage of test data, on-site real-time statistical analysis results, easy to guide the construction operation.

Professional data analysis software, so that your later data processing and reporting production work easy to complete.
